System separator
CleverLoop L


The innovative system separator for lifting stations – safe, flexible and easy to maintain Our system isolator for the pressure pipe of lifting stations impresses with a mechanical closure that only opens during pump operation and then closes automatically. The innovative closure therefore provides maximum safety against unwanted backflow – without additional power requirements or complicated technology. Thanks to the integrated maintenance opening(s), you have quick and easy access – for effortless maintenance. Maintenance interval: 100,000 switching cycles at the latest every 5 years, the major maintenance must be done even with fewer switching cycles CleverLoop can be easily adapted to different pressure connections (DN 50-100) below the backwater level in the free-flow drainage system with sleeve and socket dimensions (DN 90-200) (Sleeve, socket and pressure pipe connection not included).
| Item no. | 23000 |
|---|---|
| GTIN | 4026092111161 |
| Price group | 20 |

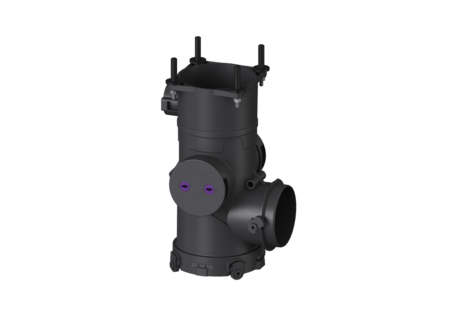

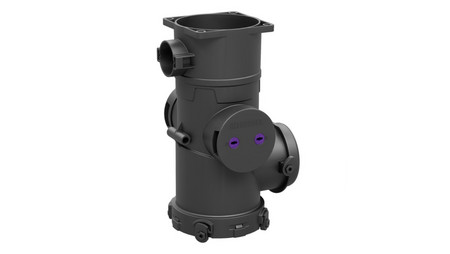

System separator CleverLoop L
The innovative system separator for lifting stations – safe, flexible and easy to maintain Our system isolator for the pressure pipe of lifting stations impresses with a mechanical closure that only opens during pump operation and then closes automatically. The innovative closure therefore provides maximum safety against unwanted backflow – without additional power requirements or complicated technology. Thanks to the integrated maintenance opening(s), you have quick and easy access – for effortless maintenance. Maintenance interval: 100,000 switching cycles at the latest every 5 years, the major maintenance must be done even with fewer switching cycles CleverLoop can be easily adapted to different pressure connections (DN 50-100) below the backwater level in the free-flow drainage system with sleeve and socket dimensions (DN 90-200) (Sleeve, socket and pressure pipe connection not included). General characteristics Colour: black Material: PP Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe, gravity drainage Delivery state: Modular set for assembly on site Power limit: Size L up to 9 l/sec Fixing: Supplied with soundproofed dowels for load-bearing walls Dimensions Net weight: 5,7 kg Gross weight: 7 kg Length: 293 mm Width: 315 mm Height: 495 mm Packaging dimension: length: 378 mm Packaging dimension: width: 378 mm Packaging dimension: height: 515 mm Tank/drain body Socket version: optional Pumping device Free passage: 48 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data |
- Type of wastewater (abwasserart_de): for wastewater with and without sewage
- Material (material):
PP
- (nennweite):
- Length (laenge): 293 mm
- Width (breite): 315 mm
