Ventilation switch

CleverVent

23001
23001

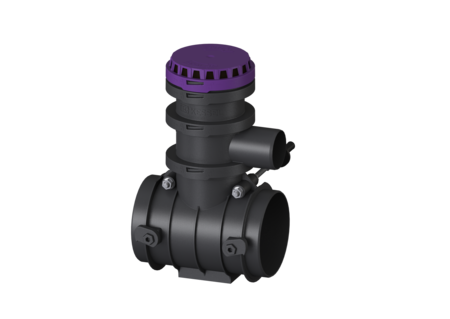

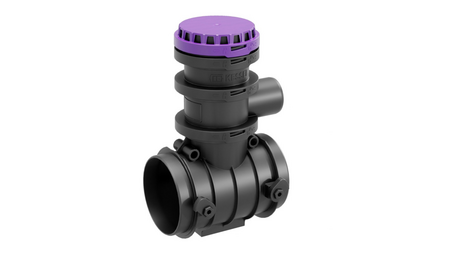

The ventilation switch for safe aeration and ventilation – innovative, reliable, flexible Our alternative aeration and ventilation unit sets new standards for the aeration and ventilation pipe of lifting stations and grease separators. With state-of-the-art technology and a clever design, it ensures safe operation – even in the case of backwater. Automatic safety: Equipped with two float closures that close automatically in the case of backwater and therefore reliably protect your system. Dual functionality: The aeration and ventilation is carried out directly in normal operation through the sewer system. In the case of backwater, an activated carbon filter takes over, ensuring ventilation across the room. The filter remains dry during normal operation, extending its service life. Easy maintenance without tools: The modular design allows quick and convenient access to the inside of the unit. Maximum flexibility: CleverVent can be easily adapted below the backwater level - in the free-flow drainage system with different sleeve and socket dimensions (DN 90-200) (accessories not included).

Item no. 23001
GTIN 4026092111178
Price group 20

    Ventilation switch CleverVent
    The ventilation switch for safe aeration and ventilation – innovative, reliable, flexible Our alternative aeration and ventilation unit sets new standards for the aeration and ventilation pipe of lifting stations and grease separators. With state-of-the-art technology and a clever design, it ensures safe operation – even in the case of backwater. Automatic safety: Equipped with two float closures that close automatically in the case of backwater and therefore reliably protect your system. Dual functionality: The aeration and ventilation is carried out directly in normal operation through the sewer system. In the case of backwater, an activated carbon filter takes over, ensuring ventilation across the room. The filter remains dry during normal operation, extending its service life. Easy maintenance without tools: The modular design allows quick and convenient access to the inside of the unit. Maximum flexibility: CleverVent can be easily adapted below the backwater level - in the free-flow drainage system with different sleeve and socket dimensions (DN 90-200) (accessories not included). General characteristics Colour: black Material: PP Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe, gravity drainage Delivery state: Modular set for assembly on site Fixing: Supplied with soundproofed dowels for load-bearing walls Air exchange rate: 15 l/s Dimensions Net weight: 2,92 kg Gross weight: 4,42 kg Length: 250 mm Width: 221 mm Height: 422 mm Packaging dimension: length: 378 mm Packaging dimension: width: 378 mm Packaging dimension: height: 515 mm Tank/drain body Venting connection (DN): 70 Socket version: optional
      Title Item no.
      Title Item no.
      Title Item no.
    83081 Spigot DN 100, with seal 83081 Vezi
    83082 Spigot DN 125, with seal 83082 Vezi
    83083 Spigot DN 150, with seal 83083 Vezi
    83084 Spigot DN 200, with seal 83084 Vezi
    83085 Socket DN 100, with seal 83085 Vezi
    83086 Socket DN 125, with seal 83086 Vezi
    83087 Socket DN 150, with seal 83087 Vezi
    83088 Socket DN 200, with seal 83088 Vezi
      Title Item no.
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
    • Material (material): PP
    • (nennweite):
