Backwater pump station, Pumpfix F
w/o socket, exposed

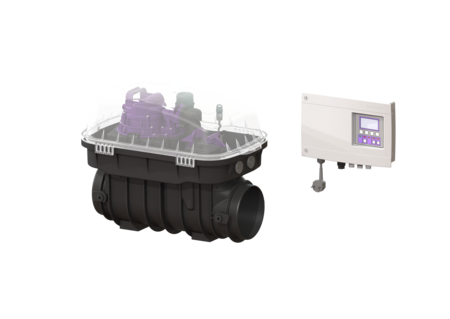

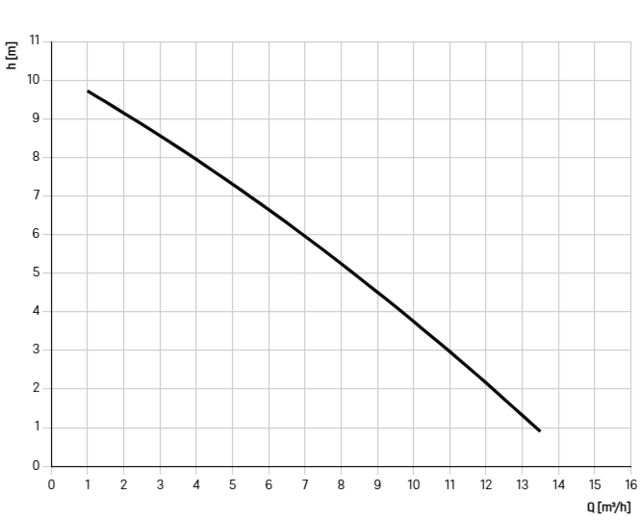

KESSEL Backwater pump station, Pumpfix F, wastewater with sewage, with a submersible SPZ 1000 pump, type of cover Protective cover, locking Clip closure, level measurement optical probe
- Backwater pumping station: uses the natural fall to the sewer - pump is only used for backwater
- Flexible installation, different covers with drain function available for installation in the floor slab
- Quiet and energy-saving
| Item no. | 24000 |
|---|---|
| GTIN | 4026092053898 |
| Price group | 30 |
Backwater pump station, Pumpfix F w/o socket, exposed
The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Emergency closure: yes Pump control: Control unit Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 General characteristics Colour: black Type of wastewater: with sewage Installation situation: exposed drainage pipe Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-388 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Dimensions Net weight: 20,5 kg Gross weight: 22 kg Vertical drop between inlet and outlet: 9 mm Installation depth: 500 - 640 mm Length: 542 mm Width: 350 mm Height: 422 mm Packaging dimension: length: 785 mm Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Tank/drain body Socket version: optional Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Locking: Clip closure Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Motor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Sensor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,2 A
| Title | Item no. | ||
|---|---|---|---|
 | Spigot DN 100, with seal | 83081 | Vezi |
 | Spigot DN 125, with seal | 83082 | Vezi |
 | Spigot DN 150, with seal | 83083 | Vezi |
 | Spigot DN 200, with seal | 83084 | Vezi |
 | Socket DN 100, with seal | 83085 | Vezi |
 | Socket DN 125, with seal | 83086 | Vezi |
 | Socket DN 150, with seal | 83087 | Vezi |
 | Socket DN 200, with seal | 83088 | Vezi |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Lockable cover Inlet side | 28052 | Vezi |
 | Lockable cover Outlet side | 28056 | Vezi |
 | Ventilation with activated carbon filter | 28060 | Vezi |
 | Active carbon filter 5 each | 28061 | Vezi |
 | Control unit Comfort 230 V, Ecolift, Pumpfix F from 01/2011 | 28071 | Vezi |
 | Replacement pump KTP/SPZ 1000 230 V, cable length 5 m | 28351 | Vezi |
 | One-handed closure for backflow preventer | 680018 | Vezi |
 | Battery 9 V block | 680034 | Vezi |
 | Flap holder for motor-driven and mechanical flap | 680101 | Vezi |
 | Pressure pipe connection with backflow preventer | 680104 | Vezi |
 | Seal set Pumpfix, Ecolift | 70319 | Vezi |
 | Backwater flap motor-driven, with flap holder | 80038 | Vezi |
 | Slide-in flap housing for motorised flap with flap holder | 80039 | Vezi |
 | Drive motor plug-in ready, 5 m cable | 80076 | Vezi |
 | Spare part set, optical probe 5 m cable | 80888 | Vezi |
 | Adapter Set optical probe | 80892 | Vezi |
 | Protective cover transparent | 83031 | Vezi |
 | Upper section for attaching a protective cover | 83032 | Vezi |
| Manuals | |
|---|---|
| CAD Data | |
| Approval | |
| Declaration of Performance | |
| Declaration of Conformity |
- Type of wastewater (abwasserart_de):
with sewage
- Control unit (schaltgeraet):
Comfort
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241793
- Installation situation (einbausituation):
exposed drainage pipe
- (nennweite):
- Length (laenge): 542 mm
- Width (breite): 350 mm
