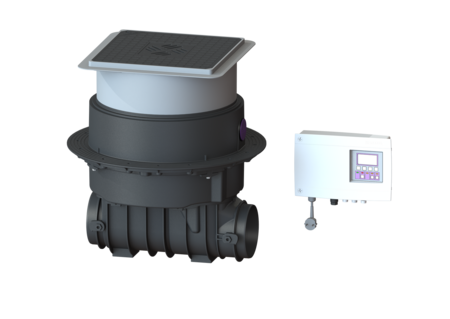

Backwater pump station, Pumpfix F

without sockets, floor slab, black

KESSEL Backwater pump station, Pumpfix F, wastewater with sewage, with a submersible SPZ 1000 pump, type of cover Cover plate with slotted cover, locking Lock & Lift, level measurement optical probe

  • Backwater pumping station: uses the natural fall to the sewer - pump is only used for backwater
  • Flexible installation, different covers with drain function available for installation in the floor slab
  • Quiet and energy-saving
Item no. 24000S
GTIN 4026092053904
Price group 30

Backwater pump station, Pumpfix F without sockets, floor slab, black
The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Emergency closure: yes Pump control: Control unit Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-388 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Dimensions Net weight: 28,2 kg Gross weight: 31 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 590 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Socket version: optional Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: L 15 (EN 1253-1) Odour trap: Multistop Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Motor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Sensor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,2 A
  Title Item no.
Spigot DN 100, with seal 83081 Vezi
Spigot DN 125, with seal 83082 Vezi
Spigot DN 150, with seal 83083 Vezi
Spigot DN 200, with seal 83084 Vezi
Socket DN 100, with seal 83085 Vezi
Socket DN 125, with seal 83086 Vezi
Socket DN 150, with seal 83087 Vezi
Socket DN 200, with seal 83088 Vezi
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Vezi
Clearance code for potential-free contact 80077 Vezi
Cable accessories 80889 Vezi
Cable accessories Extension for motor 80890 Vezi
Cable accessories Extension for pump 80891 Vezi
Extension section H: 200 mm 83070 Vezi
Extension section H: 234 mm, with flange and mating flange 83073 Vezi
Extension section H: 360 mm, with central flange 83075 Vezi
  Title Item no.
Pump cover inlet side 28054 Vezi
Pumpfix F Premium Komf. Cover outlet s. 28056 Vezi
Ventilation with activated carbon filter 28060 Vezi
Active carbon filter 5 each 28061 Vezi
Control unit Comfort 230V, from 01/2011 28071 Vezi
KTP1000 cutting assembly replacement set 28075 Vezi
Replacement pump KTP/SPZ 1000 230 V, cable length 5 m 28351 Vezi
One-handed closure for backflow preventer 680018 Vezi
Battery 9 V block 680034 Vezi
Drain connection DN 70, for Pumpfix, Ecolift, Aqualift F 680075 Vezi
Flap holder for motor-driven and mechanical flap 680101 Vezi
Pressure pipe connection with backflow preventer 680104 Vezi
Seal for upper section, from 07/2014 680150 Vezi
Seal for cover plate, System 330 mm 686114 Vezi
Seal set Pumpfix, Ecolift 70319 Vezi
Motor-driven backwater flap Premium 80038 Vezi
Slide-in flap housing for motorised flap with flap holder 80039 Vezi
Drive motor plug-in ready, 5 m cable 80076 Vezi
Spare part set, optical probe 5 m cable 80888 Vezi
Adapter Set optical probe 80892 Vezi
Cover plate 366 x 366 mm w. flat drain body, Multistop, black 830046 Vezi
Upper section system 400 830065 Vezi
  • Type of wastewater (abwasserart_de): with sewage
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241793
  • Installation situation (einbausituation): floor slab installation
  • (nennweite):
  • Type of cover (abdeckungsart): Cover plate with slotted cover
  • Length (laenge): 590  mm
  • Width (breite): 590  mm
