Tech kit Minilift L Underfloor

KTP 300 resistant

280570C-TK

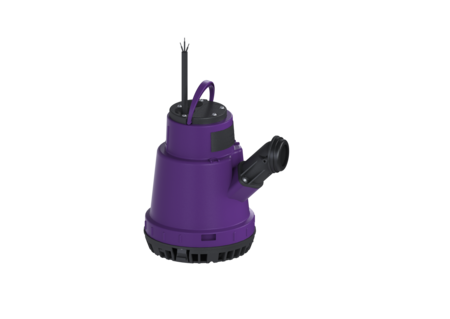

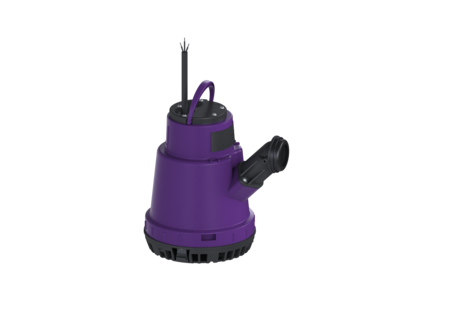

KESSEL Tech kit Minilift L Underfloor KTP 300 resistant, with a submersible KTP 300 resistant pump, operating mode S1, Single unit, pumping height 6 m

Item no. 280570C-TK
GTIN 4026092108093
Price group 20

Tech kit Minilift L Underfloor KTP 300 resistant
For combination with a KESSEL shell kit for creating a Minilift L small lifting station for wastewater without sewage. The ready to plug in small lifting station for wastewater without sewage is suitable for the disposal of wastewater from individual drainage sources. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems - Includes float switch for level measurement Variant Type of system: Single unit Resistant: Resistant to waste water containing salt, softener and condensate Pump control: Float switch Backflow preventer: integrated Dimensions Net weight: 4,05 kg Gross weight: 4,34 kg Packaging dimension: length: 281 mm Packaging dimension: width: 246 mm Packaging dimension: height: 273 mm Pumping device Pump: KTP 300 resistant Number of pumps: 1 Weight, pump: 4 kg Connection type: Schuko (earthed contact) 2-pin Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 8 m³/h Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (pump): C 16 A Length of mains cable for pump: 5 m Rated current: 1,6 A Control Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
  Title Item no.
  Title Item no.
  Title Item no.
20222 Alarm unit with electronic probe 20222 Vezi
20223 Alarm unit with optical probe 20223 Vezi
20224 Alarm unit with optical probe 10 m 20224 Vezi
27126 Adapter DN 50/70 27126 Vezi
27602 Adapter DN 100/70 27602 Vezi
28040 Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Vezi
28086 Adapter for pressure pipe connection, DN 32, PE 28086 Vezi
28093 Backflow preventer for plugging in, for DN 50 inlet 28093 Vezi
39005 Inlet socket DN 50, with seal, Threaded ring 39005 Vezi
39007 Inlet socket DN 70, with seal, Threaded ring 39007 Vezi
48500 Odour trap Multistop, System 125 48500 Vezi
48550 Odour trap Megastop 48550 Vezi
500101 Hole saw for DN 50/70/100 500101 Vezi
680696 Odour trap for The Ultraflat 79 680696 Vezi
680795 Drain body for cover plate for odour trap 50 mm, black 680795 Vezi
680796 Drain body for cover plate for Multistop, black 680796 Vezi
680797 Drain body for cover plate for odour trap 50 mm, grey 680797 Vezi
680798 Drain body for cover plate for Multistop, grey 680798 Vezi
681111 Adapter DN 40/50 681111 Vezi
80074 Potential-free contact Extension set for control units 80074 Vezi
830050 Cover plate surface water resistant, black 366x366mm 830050 Vezi
830052 Cover plate surface water resistant, tileable 830052 Vezi
830070 Extension section deeper installation, with flange 830070 Vezi
850114 Seal for pipe penetration, DN 50 850114 Vezi
850116 Seal for pipe penetration, DN 70 850116 Vezi
