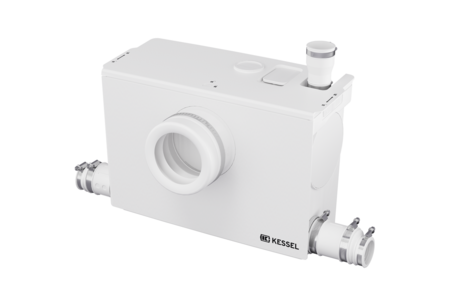

Lifting station Minilift M WC

STZ 750-S3 230V

28521

The plug-in ready Minilift M WC small lifting station is suitable for the disposal of domestic blackwater, ideal for connecting a toilet, bidet, shower and washbasin. The submersible pump with float switch can be removed without the use of tools. The pumping volume can be adjusted by means of the adjustable float switch and can therefore be optimally adapted for all requirements. The changeable toilet connection allows a toilet to be connected to the front or side of the tank. As a result of this and the extremely compact design, the system is ideal for all locations, for free-standing setup or installation behind a false wall. The deep horizontal inlets in size DN40 or DN50 make it ideally suited for connecting flat shower trays. A vertical inlet in size DN40 can be produced on site. The simple and tool-free handling ensures fast installation and flexible use. - Resistant to hot water - Discharge-side backflow preventer integrated in the factory - Powerful pump with macerator for maximum operating safety - Tool-free maintenance

Item no. 28521
GTIN 4026092111680
Price group 15

    Lifting station Minilift M WC STZ 750-S3 230V
    The plug-in ready Minilift M WC small lifting station is suitable for the disposal of domestic blackwater, ideal for connecting a toilet, bidet, shower and washbasin. The submersible pump with float switch can be removed without the use of tools. The pumping volume can be adjusted by means of the adjustable float switch and can therefore be optimally adapted for all requirements. The changeable toilet connection allows a toilet to be connected to the front or side of the tank. As a result of this and the extremely compact design, the system is ideal for all locations, for free-standing setup or installation behind a false wall. The deep horizontal inlets in size DN40 or DN50 make it ideally suited for connecting flat shower trays. A vertical inlet in size DN40 can be produced on site. The simple and tool-free handling ensures fast installation and flexible use. - Resistant to hot water - Discharge-side backflow preventer integrated in the factory - Powerful pump with macerator for maximum operating safety - Tool-free maintenance Variant Type of system: Single unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: white Standard: EN 12050-3 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: plug-in ready Cable length: 1,4 m Dimensions Net weight: 7,65 kg Gross weight: 8,65 kg Length: 410 mm Width: 170 mm Height: 285 mm Packaging dimension: length: 455 mm Packaging dimension: width: 227 mm Packaging dimension: height: 387 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Distance pipe bottom outlet to tank bottom: 285 mm Distance pipe bottom inlet to tank bottom: 183 mm Tank volume: 11,75 l Pumping device Pump: STZ 750-S3 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Protection class: I Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 9,8 m³/h Max. pumping height: 9 m Speed: 2700 U/min Power P1: 0,75 kW Power P2: 0,46 kW Operating mode: S3 - 15 % Type of pump connection cable: H05VV-F 3G 0,75 mm² Impeller type: Macerator Length of mains cable for pump: 1.4 m Rated current: 3,5 A Control Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (control unit): B 16 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Data Sheet
    Manuals
    Declaration of Performance
    Declaration of Conformity
    • Installation situation (einbausituation): free-standing installation
    • Type of wastewater (abwasserart_de): with sewage
    • Pump (pumpe): STZ 750-S3
