Lifting station Minilift L WC
Dry, SPZ 750-S3 230V

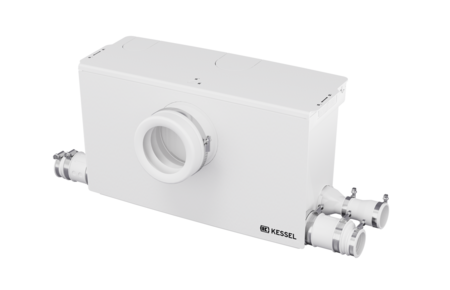

KESSEL Lifting station Minilift L WC, Single unit, wastewater with sewage, free-standing installation, with a submersible SPZ 750-S3 pump, operating mode S3 - 15 %, pressure pipe connection verticalhorizontal
- Alarm function + potential-free contact
- Dry installation of the pump
- Tool-free maintenance: pump can be replaced in less than 10 seconds
| Item no. | 28522 |
|---|---|
| GTIN | 4026092111697 |
| Price group | 15 |
Lifting station Minilift L WC Dry, SPZ 750-S3 230V

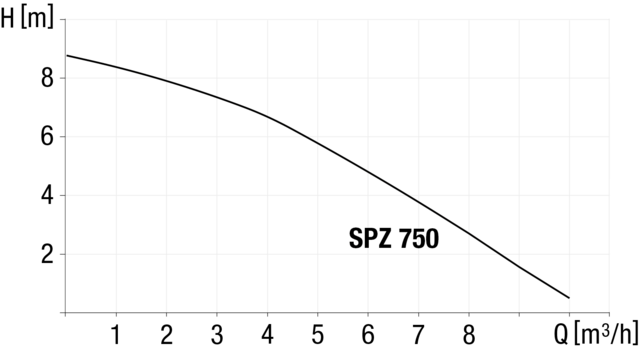

The plug-in ready Minilift L WC small lifting station is suitable for the disposal of domestic blackwater, ideal for connecting a toilet, bidet, shower and washbasin. The dry-installed pump can be removed without the use of tools. The pumping volume can be adjusted via the pressure sensor system using a rotary switch and can therefore be optimally adapted for all requirements. The changeable toilet connection allows a toilet to be connected to the front or side of the tank. As a result of this and the extremely compact design, the system is ideal for all locations, for free-standing setup or installation behind a false wall. The deep horizontal inlets in size DN40 or DN50 make it ideally suited for connecting flat shower trays. A vertical inlet is available in size DN40. The simple and tool-free handling ensures fast installation and flexible use. - Powerful, dry-installed pump with macerator for maximum operating safety and hygiene - Alarm function with optional forwarding (potential-free contact) - Either a vertical or horizontal pressure pipe connection - Discharge-side backflow preventer integrated in the factory - Resistant to hot water - Tool-free maintenance Variant Type of system: Single unit Backflow preventer: integrated Pressure pipe connection: vertical, horizontal General characteristics Colour: white Standard: EN 12050-3 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: plug-in ready Cable length: 1,4 m Dimensions Net weight: 7,71 kg Gross weight: 8,71 kg Length: 485 mm Width: 170 mm Height: 285 mm Packaging dimension: length: 530 mm Packaging dimension: width: 227 mm Packaging dimension: height: 390 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Distance pipe bottom outlet to tank bottom: 23 mm Distance pipe bottom inlet to tank bottom: 183 mm Tank volume: 11,55 l Pumping device Pump: SPZ 750-S3 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Protection class: I Protection class (pump): IP 44 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 50 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 9,8 m³/h Max. pumping height: 9 m Speed: 2700 U/min Power P1: 0,75 kW Power P2: 0,46 kW Operating mode: S3 - 15 % Type of pump connection cable: H05VV-F 3G 0,75 mm² Impeller type: Macerator Length of mains cable for pump: 1.4 m Rated current: 3,5 A Control Motor protection switch: yes Level measurement instrument: Pressure switch Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Potential-free contact: yes Warning equipment version: acoustic signal tone
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Replacement pump SPZ 750-S3 Dry installation, Tronic, 230 V | 681265 | Vezi |
 | Inlet covers horizontal for Minilift | 681272 | Vezi |
 | Pressure pipe connection horizontal for Minilift S/L WC | 681273 | Vezi |
 | Handle for Minilift L WC/Duo, SPZ 600 | 681290 | Vezi |
 | Control unit for Minilift L WC | 681291 | Vezi |
 | Electrical cover for Minilift L WC | 681292 | Vezi |
 | Control/mains cable for Minilift L WC | 681293 | Vezi |
 | Cover for Minilift L WC | 681294 | Vezi |
 | Cover front, for Minilift WC | 681295 | Vezi |
 | Cover side, for Minilift WC | 681296 | Vezi |
 | Pressure pipe connection for Minilift L WC | 681297 | Vezi |
| Cover for Minilift L WC, pr-pipe con, horiz | 681298 | Vezi | |
 | Inlet cover vertical for Minilift | 681308 | Vezi |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Declaration of Performance | |
| Declaration of Conformity |
- Installation situation (einbausituation):
free-standing installation
- Type of wastewater (abwasserart_de): with sewage
- Pump (pumpe): SPZ 750-S3
