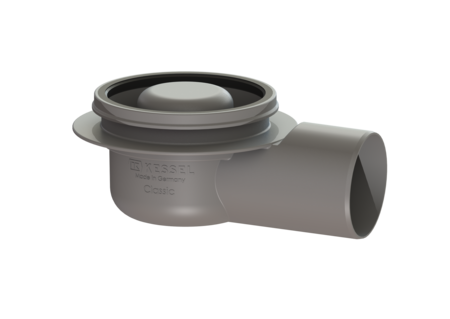

Drain body Classic DN70 side + od. tr.
KESSEL Drain body Classic bathr. drain, length 184 mm, nominal size (DN) 70, drainage by Point drain, socket lateral, Sealing water height 50 mm
| Item no. | 40170 |
|---|---|
| GTIN | 4026092028711 |
| Price group | 10 |
The drain body for Classic floor/bathroom drains is made of polymer and is equipped with a secure, reliably installed seal. Variant System: 100 Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 75 mm Odour trap: included Dimensions Net weight: 0,25 kg Gross weight: 0,29 kg Length: 184 mm Width: 156 mm Height: 90 mm Packaging dimension: length: 210 mm Packaging dimension: width: 165 mm Packaging dimension: height: 88 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral
| Title | Item no. | ||
|---|---|---|---|
![]() | Upper section, st. st. grid, 100x100mm | 27165 | Vezi |
![]() | Upper section, ABS/PA, with flange | 27192 | Vezi |
![]() | Upper section system 100 ABS, 120x120mm | 27201 | Vezi |
![]() | Upper section system 100, ABS, 120x120mm | 27202 | Vezi |
![]() | Upper section, recessed, 110x110mm | 27210 | Vezi |
![]() | Upper section, recessed, 110x110mm | 27211 | Vezi |
![]() | Variofix upper section System 100, Slotted cover, 304 SST, K 3 | 47901 | Vezi |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
![]() | Extension section System 100, H: 161 mm | 27146 | Vezi |
![]() | Sludge bucket d: 110 mm | 27168 | Vezi |
![]() | Extension section System 100, with pressure sealing flange | 27198 | Vezi |
![]() | Extension section System 100, with glued flange | 27199 | Vezi |
![]() | Odour trap Multistop, System 100 | 43500 | Vezi |
![]() | Hair filter Polymer, for System 100 bathroom drains | 43700 | Vezi |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Approval |
- Nominal size (DN) (nennweite): 70
- Material of drain body (material_grundkoerper):
ABS
- TÜV test mark (pruefzeichen):
ID 1111244461
- Socket version (stutzen_ausfuehrung):
lateral
- (abdeckungsart):
- (abdichtung_am_Grundkoerper):
- (form_Aufsatzstueck):
