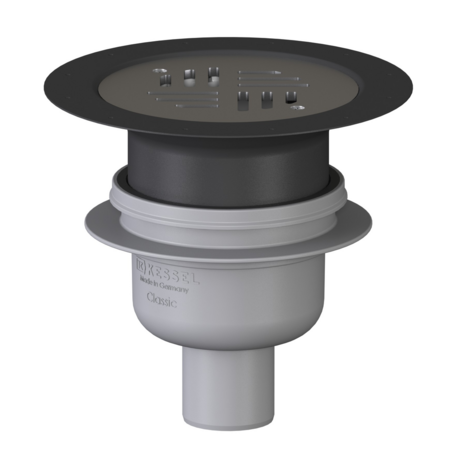

Bathroom drain, Classic
DN50, vert., Slotted gr, K3, V2A
KESSEL Bathroom drain, Classic, length 200 mm, nominal size (DN) 50, odour trap included, type of cover Round slotted cover, Cover Stainless steel 14301, socket vertical, locking
- Odour trap height: 50 mm
- Lip seal fixed on the drain body
- System 100 - modular design
| Item no. | 40250.31 |
|---|---|
| GTIN | 4026092112809 |
Bathroom drain, Classic DN50, vert., Slotted gr, K3, V2A
The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Variant System: 100 Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Nominal size (DN): 50 Odour trap: included Dimensions Vertical adjustment: 25 - 65 mm Net weight: 0,76 kg Gross weight: 0,98 kg Diameter: 141 mm Vertically adjustable: yes Type of height adjustability: vertically adjustable upper section Length: 200 mm Width: 200 mm Height: 135 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: vertical Coverage features Type of cover: Round slotted cover Cover material: Stainless steel 14301 Colour of cover: grey Surface: Polished SST Load class: K 3 (EN 1253-1) Upper section material: PA+PVC
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data |
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper):
ABS
- Cover material (abdeckung_material):
Stainless steel 14301
- Socket version (stutzen_ausfuehrung):
vertical
- Type of cover (abdeckungsart): Round slotted cover
- (abdichtung_am_Grundkoerper):
- (form_Aufsatzstueck):
