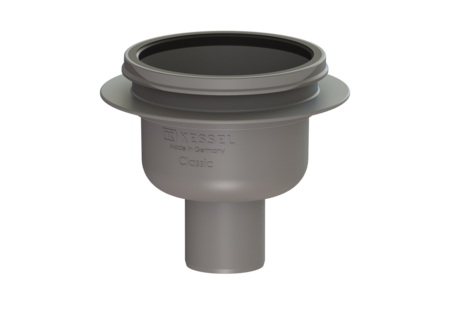

Drain body Classic bathr. drain

Sys 100, DN 50, Vertical outlet

40251
PDF product data sheet

KESSEL Drain body Classic bathr. drain, length 156 mm, nominal size (DN) 50, drainage by Point drain, socket vertical, Sealing water height 50 mm

  • Odour trap height: 50 mm
  • Lip seal fixed to the drain body
  • System 100 - Modular system
Item no. 40251
GTIN 4026092029466
Price group 10

    Drain body Classic bathr. drain Sys 100, DN 50, Vertical outlet
    The drain body for Classic floor/bathroom drains is made of polymer and is equipped with a secure, reliably installed seal. Variant System: 100 Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Standard: EN 1253-2 Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: no Dimensions Net weight: 0,14 kg Gross weight: 0,18 kg Length: 156 mm Width: 156 mm Height: 135 mm Packaging dimension: length: 160 mm Packaging dimension: width: 160 mm Packaging dimension: height: 133 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: vertical
      Title Item no.
    27165 Upper section System 100, Slotted cover, 304 SST, K 3 27165 Vezi
    27176 Upper section System 100, Slotted cover, anti-slip 27176 Vezi
    27192 Upper section System 100, Slotted cover, white, K 3 27192 Vezi
    27201 Upper section Sys100, Kessel des cover, 304SST, L15 27201 Vezi
    27202 Upper section Sys 100, Oval des cover, 304 SST, L 15 27202 Vezi
    27210 Upper section System 100, tileable, Polymer, K 3 27210 Vezi
    27211 Upper section System 100, tileable, 304 SST, K 3 27211 Vezi
    47901 Variofix upper section System 100, Slotted cover, 304 SST, K 3 47901 Vezi
    47902 Variofix upper section System 100, Slotted cover, 304 SST, L 15 47902 Vezi
    47904 Variofix upper section Sys100, Kessel des cover, 304 SST, L 15 47904 Vezi
    47905 Variofix upper section Sys100, Oval ded cover, 304 SST, L 15 47905 Vezi
    47906 Variofix upper section System 100, tileable, 304 SST, K 3 47906 Vezi
      Title Item no.
      Title Item no.
    27118 Adapter DN 50/40 27118 Vezi
    27126 Adapter DN 50/70 27126 Vezi
    27146 Extension section System 100, H: 161 mm 27146 Vezi
    27168 Sludge bucket d: 110 mm 27168 Vezi
    27198 Extension section System 100, with pressure sealing flange 27198 Vezi
    27199 Extension section System 100, with glued flange 27199 Vezi
    43500 Odour trap Multistop, System 100 43500 Vezi
    43700 Hair filter Polymer, for System 100 bathroom drains 43700 Vezi
    47900 Intermediate section with system 100 glued flange 47900 Vezi
      Title Item no.
    CAD Data
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Socket version (stutzen_ausfuehrung): vertical
    • (abdeckungsart):
    • (abdichtung_am_Grundkoerper):
    • (form_Aufsatzstueck):
