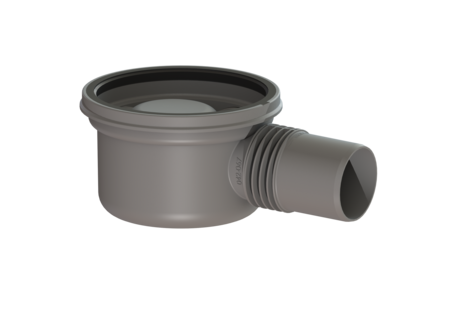

The Superflat drain body

Sys 100, DN 50, Horizontal outlet

42700
PDF product data sheet

KESSEL The Superflat drain body, with inlet, drainage by Point drain, design cover

  • Movable outlet socket
  • Lip seal fixed on the drain body
  • System 100 – modular design
Item no. 42700
GTIN 4026092028698
Price group 10

    The Superflat drain body Sys 100, DN 50, Horizontal outlet
    The drain body for floor/bathroom drains. The Superflat is made of polymer and is equipped with a secure, reliably installed seal, a flexible outlet and a removable odour trap. Variant System: 100 Sealing water height: 30 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Net weight: 0,21 kg Gross weight: 0,26 kg Length: 185 mm Width: 129 mm Height: 80 mm Packaging dimension: length: 140 mm Packaging dimension: width: 130 mm Packaging dimension: height: 80 mm Tank/drain body Number of outlets: 1 Inlet nominal size (DN): 40 mm Number of inlets: 1 Material of drain body: PP Socket version: lateral
      Title Item no.
    27165 Upper section System 100, Slotted cover, 304 SST, K 3 27165 Vezi
    27176 Upper section System 100, Slotted cover, anti-slip 27176 Vezi
    27192 Upper section System 100, Slotted cover, white, K 3 27192 Vezi
    27201 Upper section Sys100, Kessel des cover, 304SST, L15 27201 Vezi
    27202 Upper section Sys 100, Oval des cover, 304 SST, L 15 27202 Vezi
    27210 Upper section System 100, tileable, Polymer, K 3 27210 Vezi
    27211 Upper section System 100, tileable, 304 SST, K 3 27211 Vezi
    47901 Variofix upper section System 100, Slotted cover, 304 SST, K 3 47901 Vezi
    47902 Variofix upper section System 100, Slotted cover, 304 SST, L 15 47902 Vezi
    47904 Variofix upper section Sys100, Kessel des cover, 304 SST, L 15 47904 Vezi
    47905 Variofix upper section Sys100, Oval ded cover, 304 SST, L 15 47905 Vezi
    47906 Variofix upper section System 100, tileable, 304 SST, K 3 47906 Vezi
      Title Item no.
      Title Item no.
    27118 Adapter DN 50/40 27118 Vezi
    27126 Adapter DN 50/70 27126 Vezi
    27146 Extension section System 100, H: 161 mm 27146 Vezi
    27168 Sludge bucket d: 110 mm 27168 Vezi
    27198 Extension section System 100, with pressure sealing flange 27198 Vezi
    27199 Extension section System 100, with glued flange 27199 Vezi
    43500 Odour trap Multistop, System 100 43500 Vezi
    43700 Hair filter Polymer, for System 100 bathroom drains 43700 Vezi
    43710 Membrane 500 x 500 mm 43710 Vezi
    43730 Membrane EPDM, 500 x 500 mm 43730 Vezi
    47900 Intermediate section with system 100 glued flange 47900 Vezi
      Title Item no.
    CAD Data
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Socket version (stutzen_ausfuehrung): lateral
    • Inlet nominal size (DN) (zulauf_nennweite_dn): 40  mm
    • (auslauf_nennweite_dn):
