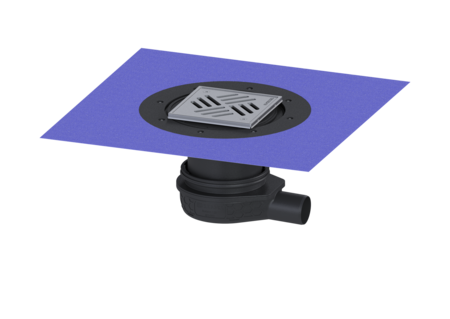

The Ultraflat 79 floor drain

DN 50, Variofix, slot grat., screwed

KESSEL The Ultraflat 79 floor drain, cover length 138 mm, socket lateral, nominal size (DN) 50, volume 22,97 dm³, type of cover Slotted cover, locking screwed, design cover, Sealing water height 50 mm

  • Low installation depth
  • Scientifically confirmed sound insulation effect
  • different design covers
Item no. 44700.51
GTIN 4026092080931
Price group 10

    The Ultraflat 79 floor drain DN 50, Variofix, slot grat., screwed
    The Ultraflat 79 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Variant System: 125 Seepage opening: optional Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm Discharge rate (l/s) with 10 mm backwater: 1,2 Discharge rate (l/s) with 20 mm backwater: 1,3 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Vertical adjustment: 119 - 174 mm Net weight: 2,27 kg Gross weight: 2,27 kg Type of height adjustability: vertically adjustable upper section Length: 312 mm Width: 312 mm Height: 79 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 138 mm Height of cover: 9 mm Length of cover: 138 mm Surface: ground Frame material: Stainless steel 14301 Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Adapter DN 50/40 27118 Vezi
    Installation aid set for The Ultraflat 54 & 79 drain body 44702 Vezi
    Hair filter for The Ultraflat 54 & 79, System 125 44704 Vezi
    Extension section H: 140 mm, with glued flange 48403 Vezi
    Extension section H: 147 mm, with pressure sealing flange 48404 Vezi
    Odour trap Multistop, System 125 48500 Vezi
    Extension section H: 120 mm, with glued flange 48900 Vezi
    Extension section H: 136 mm, without inlet 48987 Vezi
    Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
    Odour trap for The Ultraflat 79 680696 Vezi
      Title Item no.
    Waterproofing membrane for joint sealing, liquid 48651 Vezi
    Variofix upper section Slotted cover, 304 SST, K 3 48963 Vezi
    Odour trap for The Ultraflat 79 680696 Vezi
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Type of cover (abdeckungsart): Slotted cover
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Locking (verriegelung): screwed
    • Odour trap (geruchsverschluss): included
