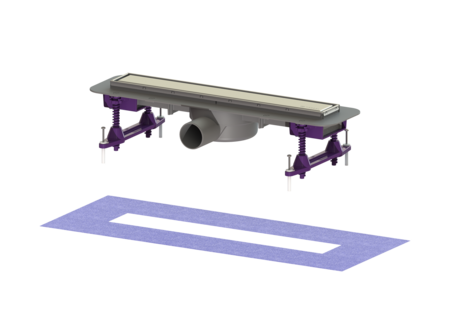

Shower channel Linearis Compact

L: 450 mm, DN50, enclWPM, 304SSTcov, K3

KESSEL Shower channel Linearis Compact, length 450 mm, nominal size (DN) 50, drainage by Linear drain, type of cover Stainless steel cover, waterproofing layer upper section by Enclosed sealing collar to be glued (bd) according to DIN 18534

  • Individual design with reversible stainless steel insert
  • Low installation depth
  • Highest fire protection standards
Item no. 45600.60
GTIN 4026092048160
Price group 10

    Shower channel Linearis Compact L: 450 mm, DN50, enclWPM, 304SSTcov, K3
    The Linearis Compact shower channel with welded on drain body made of ABS is suitable for indoor linear drainage. If inserted upside down, the stainless steel insert can be tiled individually. Including prepared seepage water openings and odour trap. Variant System: 125 Seepage opening: prepared Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W2-I Sealing water height: 22 mm Discharge rate (l/s) with 10 mm backwater: 0,6 Discharge rate (l/s) with 20 mm backwater: 0,7 Discharge rate (l/s) without backwater: 0,5 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Net weight: 1,32 kg Gross weight: 1,83 kg Outer dimension, length: 515 mm Installation depth: 80 - 140 mm Width: 191 mm Height: 80 mm Packaging dimension: length: 664 mm Packaging dimension: width: 208 mm Packaging dimension: height: 100 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Surface: Brushed SST Frame material: Stainless steel 14301 Locking: placed Load class: K 3 (EN 1253-1) Grating design: optionally tileable Rim width: 66 mm Rim length: 450 mm Max. flooring height: 15 mm Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Odour trap Linearis, sealing water height 22 mm 48603 Vezi
    Stainless steel insert Linearis Comp., L: 450 mm, til 08/2015 680260 Vezi
    Stainless steel insert Linearis Comp., L: 450 mm, fr. 09/2015 680484 Vezi
    Stand set 2 stands incl. rubber insert 680669 Vezi
    Waterproofing membrane for Linearis Compact 300 - 1150 mm 680728 Vezi
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • System (system): 125
    • Rim length (rahmen_laenge): 450  mm
