Upper section, Linearis Compact

L: 650 mm, Sys 100, 304 SST cover, K 3

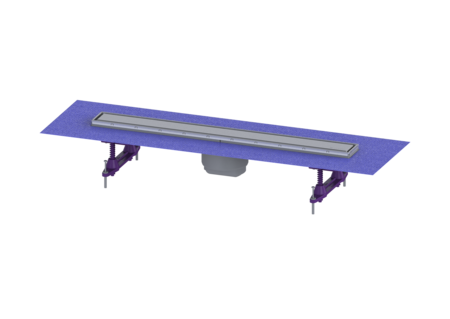

KESSEL Upper section, Linearis Compact, length 650 mm, nominal size (DN) 100, type of cover Stainless steel cover, waterproofing layer upper section by Enclosed sealing collar to be glued (bd) according to DIN 18534

  • Individual design with reversible stainless steel insert
  • Low installation depth
  • Highest fire protection standards
Item no. 47807S
GTIN 4026092079935
Price group 10

    Upper section, Linearis Compact L: 650 mm, Sys 100, 304 SST cover, K 3
    Used in combination with a drain body of the KESSEL 100 modular system, the Linearis Compact upper section is suitable for use as indoor linear drainage. Variant System: 100 Seepage opening: yes Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm Discharge rate (l/s) with 10 mm backwater: 0,6 Discharge rate (l/s) without backwater: 0,5 mm General characteristics Nominal size (DN): 100 Outer diameter (OD): 100 mm Dimensions Net weight: 1,65 kg Gross weight: 2,17 kg Outer dimension, length: 715 mm Installation depth: 80 - 140 mm Width: 136 mm Height: 77 mm Packaging dimension: length: 1280 mm Packaging dimension: width: 260 mm Packaging dimension: height: 130 mm Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Frame material: Stainless steel 14301 Locking: placed Load class: K 3 (EN 1253-1) Grating design: optionally tileable Rim width: 66 mm Rim length: 650 mm Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Odour trap Multistop, for Linearis Compact & Scada 48400 Vezi
    Sound insulation element for Linearis Compact installation supp. 48630 Vezi
    Installation aid for Linearis Compact 48639 Vezi
    Installation adhesive 2C installation mortar 48650 Vezi
    Hair filter Polymer, for shower channels 48800 Vezi
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • System (system): 100
    • Rim length (rahmen_laenge): 650  mm
