Upper section

Spot design cover, 304 SST, K 3

48220
48220
PDF product data sheet

KESSEL Upper section, frame material Stainless steel 14301, length 132 mm, width 132 mm, type of cover Design cover, locking placed, design cover Spot, Cover Stainless steel 14301, waterproofing layer upper section by

  • Multiple combinations with suitable drain bodies
Item no. 48220
GTIN 4026092042625
Price group 10

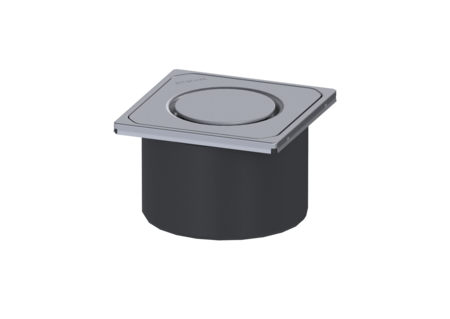

    Upper section Spot design cover, 304 SST, K 3
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 General characteristics Sustainable: through the use of recycled material Dimensions Net weight: 0,66 kg Gross weight: 0,86 kg Height: 90 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Min. flooring height: 9 mm Frame material: Stainless steel 14301 Locking: placed Load class: K 3 (EN 1253-1) Grating design: Spot Rim width: 132 mm Rim length: 132 mm Max. flooring height: 58 mm Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
