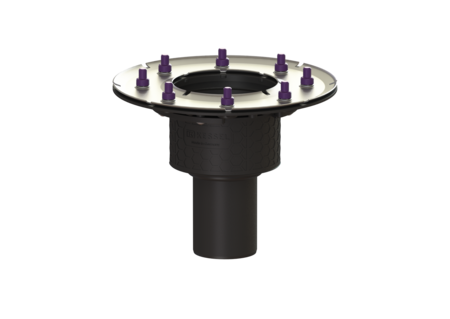

Ecoguss drain body

Press. fl., DN 70, vertical, without OT

48879
48879

KESSEL Ecoguss drain body, nominal size (DN) 70, socket vertical, drainage by Point drain, odour trap, waterproofing layer drain body by Press sealing flange (suitable for creating watertight seals)

  • High-tech Ecoguss composite material
  • Highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48879
GTIN 4026092038208
Price group 40

    Ecoguss drain body Press. fl., DN 70, vertical, without OT
    The Ecoguss base body is used in combination with an attachment piece for point drainage, and is equipped with a removable odor trap, and a protective cover for the construction period. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The glued flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-2 Nominal size (DN): 70 Outer diameter (OD): 78 mm Approval: Z-19.53-2414,Z-19.17-1719 Dimensions Net weight: 2,01 kg Gross weight: 2,3 kg Diameter: 273 mm Height: 217 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss Socket version: vertical
      Title Item no.
      Title Item no.
      Title Item no.
    48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Vezi
      Title Item no.
    • Nominal size (DN) (nennweite): 70
    • Material of drain body (material_grundkoerper): Ecoguss
    • Socket version (stutzen_ausfuehrung): vertical
    • Odour trap (geruchsverschluss):
