Pump drive SPF 3000

400 V, S3, 10 m cable

680221
680221
PDF product data sheet

Pump drive with multi-vane impeller for faecal wastewater

Item no. 680221
GTIN 4026092066805
Price group 90

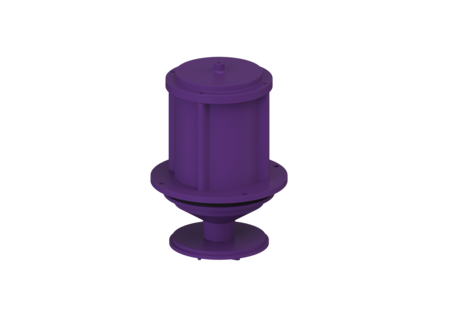

    Pump drive SPF 3000 400 V, S3, 10 m cable
    Pump drive with multi-vane impeller for faecal wastewater General characteristics Type of wastewater: with sewage Dimensions Net weight: 25,2 kg Gross weight: 28 kg Packaging dimension: length: 585 mm Packaging dimension: width: 350 mm Packaging dimension: height: 380 mm Pumping device Pump: SPF 3000-S3 Connection type: Direct connection Operating voltage: 400 V Protection class: I Run dry safe: no Protection class (pump): IP 68 (3m/48h) Temperature monitoring: controlled via control unit Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 16 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Length of mains cable for pump: 5 m Rated current: 5,4 A Control Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Type of wastewater (abwasserart_de): with sewage
