Comfort control unit

Mono, 400 V, 6.3-10 A

680617
PDF product data sheet

Control unit, Comfort 400 V Mono 6.3-10 A

Item no. 680617
GTIN 4026092078617
Price group 90

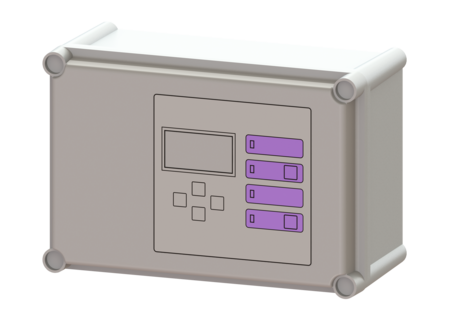

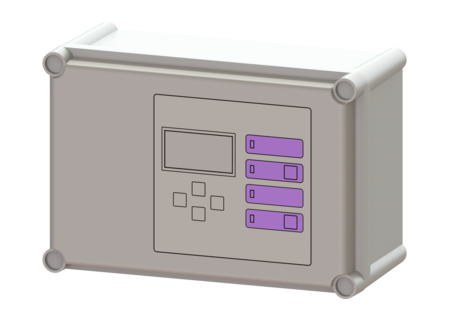

    Comfort control unit Mono, 400 V, 6.3-10 A
    Control unit, Comfort 400 V Mono 6.3-10 A Dimensions Net weight: 2,53 kg Gross weight: 2,88 kg Packaging dimension: length: 330 mm Packaging dimension: width: 250 mm Packaging dimension: height: 210 mm Pumping device Connection type: Direct connection Type of fuse required (pump): C 20 A Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Control unit (schaltgeraet): Comfort
