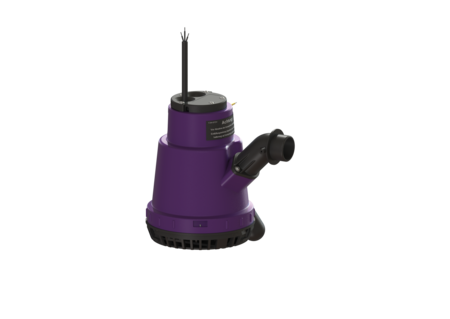

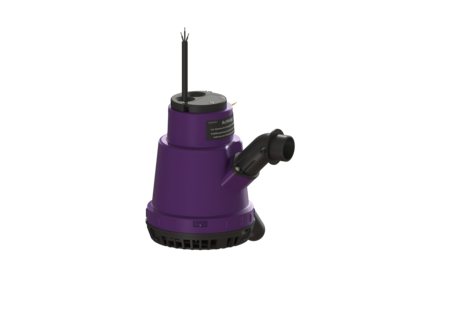

Replacement pump KTP 300
res., Minilift S, free-standing set-up
Replacement pump resistant to salty media, wastewater from water softening systems and wastewater containing condensate from heating systems.
Item no. | 680954 |
---|---|
GTIN | 4026092093818 |
Price group | 90 |
Replacement pump KTP 300 res., Minilift S, free-standing set-up
Replacement pump resistant to salty media, wastewater from water softening systems and wastewater containing condensate from heating systems. Dimensions Net weight: 4,48 kg Gross weight: 4,48 kg Packaging dimension: length: 281 mm Packaging dimension: width: 246 mm Packaging dimension: height: 273 mm Pumping device Pump: KTP 300 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 1,9 A Protection class: I Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 5 m Control Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Manuals | |
---|---|
Declaration of Conformity |
