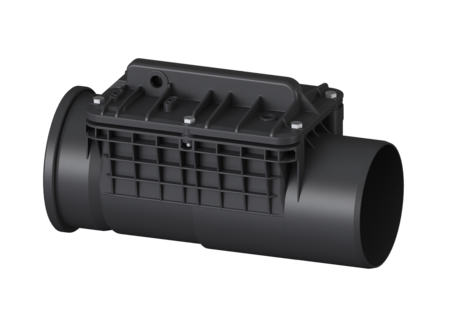

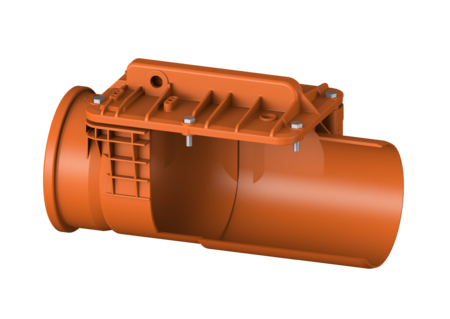

Staufix Basic clean out
DN 200
KESSEL Staufix Basic clean out, wastewater without sewage, exposed drainage pipe, outside diameter (OD) 200 mm, cover locking screwed
- Simple conversion possible using conversion kits
- Quick and toolless access for cleaning
- Ideal for modernisation, can also be installed in existing pipes later
| Item no. | 70200 |
|---|---|
| GTIN | 4026092002179 |
| Price group | 10 |
Staufix Basic clean out DN 200
The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix Basic backwater valve with up to two flaps and emergency closure. General characteristics Colour: black Nominal size (DN): 200 Outer diameter (OD): 200 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 2,2 kg Gross weight: 2,2 kg Vertical drop between inlet and outlet: 9 mm Length: 530 mm Width: 248 mm Height: 278 mm Packaging dimension: length: 533 mm Packaging dimension: width: 240 mm Packaging dimension: height: 290 mm Coverage features Cover locking: screwed
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| CAD Data |
- Nominal size (DN) (nennweite): 200
- Installation situation (einbausituation):
exposed drainage pipe
- Type of wastewater (abwasserart_de):
without sewage
- (rueckstauschutz):
- (mechanische_rueckstauklappen):
- (notverschluss):
