Backwater valve Multitube

DN 300, 1 flap

71300
71300
PDF product data sheet

KESSEL Backwater valve Multitube, wastewater without sewage, nominal size (DN) 300, underground installation, a mechanical backwater flap, outside diameter (OD) 316 mm, cover locking screwed

  • Inlet and outlet with pipe clamp
  • Bridgeable outer diameter at least nominal width + 20 mm
  • Simple maintenance and cleaning
Item no. 71300
GTIN 4026092011614
Price group 10

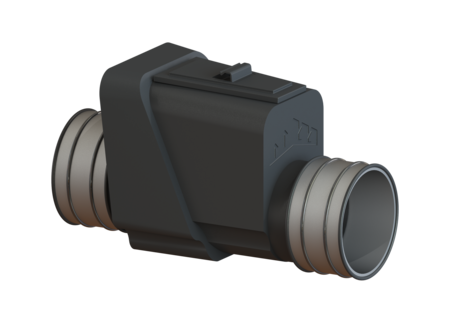

    Backwater valve Multitube DN 300, 1 flap
    The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 300 Outer diameter (OD): 316 mm Note on nominal size: Bridgeable outer diameter of pipe clamps: 310 - 335 mm Type of wastewater: without sewage Installation situation: underground installation Delivery state: installation-ready Dimensions Net weight: 25 kg Gross weight: 25 kg Vertical drop between inlet and outlet: 52 mm Length: 735 mm Width: 525 mm Height: 572 mm Packaging dimension: length: 820 mm Packaging dimension: width: 380 mm Packaging dimension: height: 520 mm Coverage features Cover locking: screwed
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Nominal size (DN) (nennweite): 300
    • Installation situation (einbausituation): underground installation
    • Type of wastewater (abwasserart_de): without sewage
    • Length (laenge): 735  mm
    • Width (breite): 525  mm
    • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
