Pipe flap valve

DN 1000

791000
PDF product data sheet

KESSEL Pipe flap valve, nominal size (DN) 1000, wastewater without sewage, outside diameter (OD) 1000 mm, exposed drainage pipe

  • For universal use in salt and fresh water environments
  • Low weight for simple installation with high mechanical strength
  • High tightness: seals airtight even with low counter-pressure
Item no. 791000
GTIN 4026092054987
Price group 10

    Pipe flap valve DN 1000

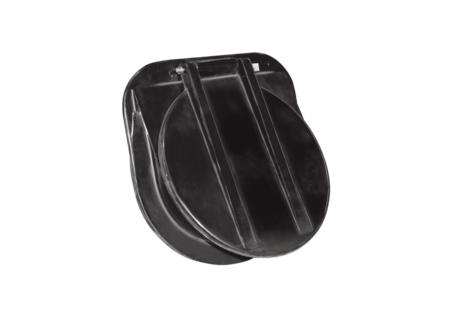

    The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 1000 Outer diameter (OD): 1000 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 80 kg Gross weight: 80 kg Length: 495 mm Width: 1264 mm Height: 1330 mm Packaging dimension: length: 1400 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 600 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • Nominal size (DN) (nennweite): 1.000
    • Length (laenge): 495  mm
    • Width (breite): 1.264  mm
    • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
