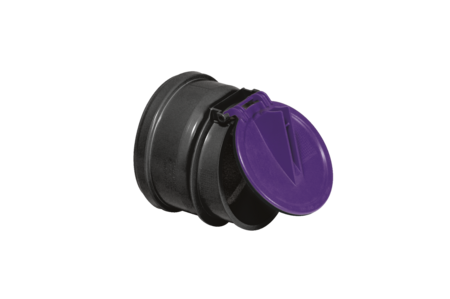

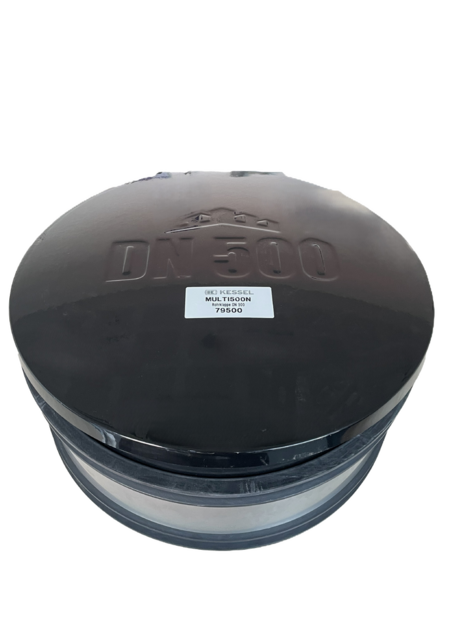

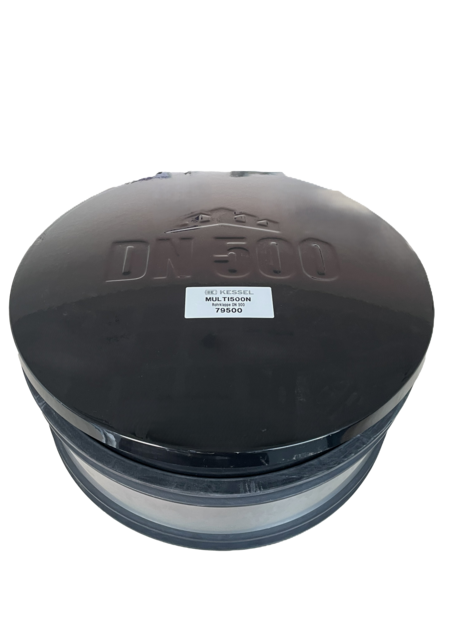

Pipe flap valve

DN 500

79500
PDF product data sheet

KESSEL Pipe flap valve, nominal size (DN) 500, wastewater without sewage, outside diameter (OD) 506 mm, exposed drainage pipe

  • For universal use in salt and fresh water environments
  • Low weight for simple installation with high mechanical strength
  • High tightness: seals airtight even with low counter-pressure
Item no. 79500
GTIN 4026092011676
Price group 10

    Pipe flap valve DN 500
    The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 500 Outer diameter (OD): 506 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 20 kg Gross weight: 20 kg Length: 320 mm Width: 522 mm Height: 528 mm Packaging dimension: length: 500 mm Packaging dimension: width: 590 mm Packaging dimension: height: 680 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • Nominal size (DN) (nennweite): 500
    • Length (laenge): 320  mm
    • Width (breite): 522  mm
    • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
