Pipe flap valve

DN 600

79600
PDF product data sheet

KESSEL Pipe flap valve, nominal size (DN) 600, wastewater without sewage, outside diameter (OD) 638 mm, exposed drainage pipe

  • For universal use in salt and fresh water environments
  • Low weight for simple installation with high mechanical strength
  • High tightness: seals airtight even with low counter-pressure
Item no. 79600
GTIN 4026092011683
Price group 10

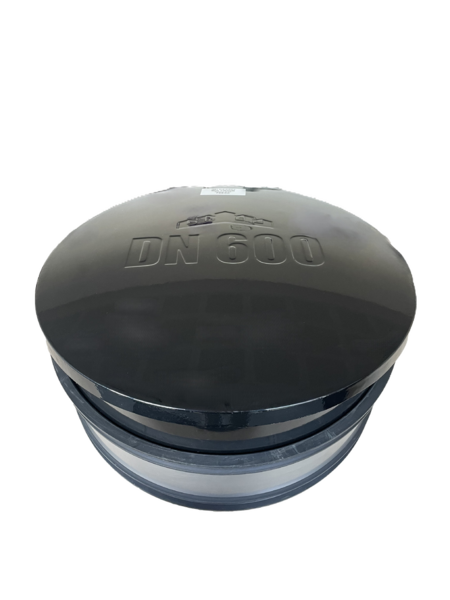

    Pipe flap valve DN 600
    The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 600 Outer diameter (OD): 638 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 29 kg Gross weight: 29 kg Length: 345 mm Width: 655 mm Height: 659 mm Packaging dimension: length: 530 mm Packaging dimension: width: 730 mm Packaging dimension: height: 770 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • Nominal size (DN) (nennweite): 600
    • Length (laenge): 345  mm
    • Width (breite): 655  mm
    • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
