Pumping station Aquapump Medium
Duo, GTF 600, 800-1250 mm, B

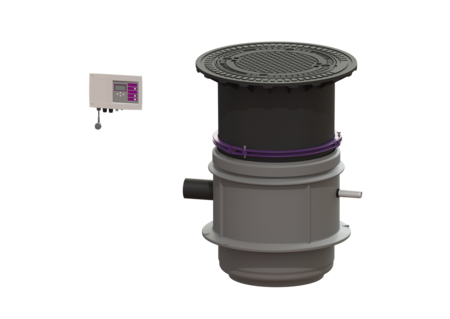

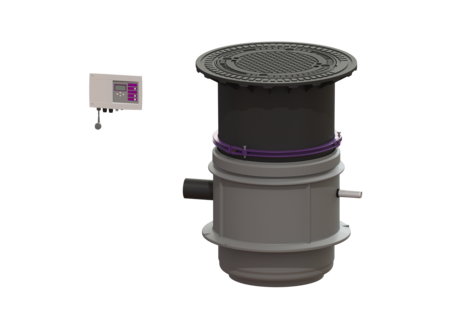

KESSEL Pumping station Aquapump Medium, Duo, wastewater without sewage, load class B 125, installation depth 800 - 1250 mm, height 103 mm, max. inrush current 6,9 A, with 2 submersible GTF 600 pumps, level measurement pneumatic
- Maximum safety
- Preconfigured in the factory
- LW 600 chamber system suitable for underground installation
| Item no. | 824811B |
|---|---|
| GTIN | 4026092045152 |
| Price group | 60 |

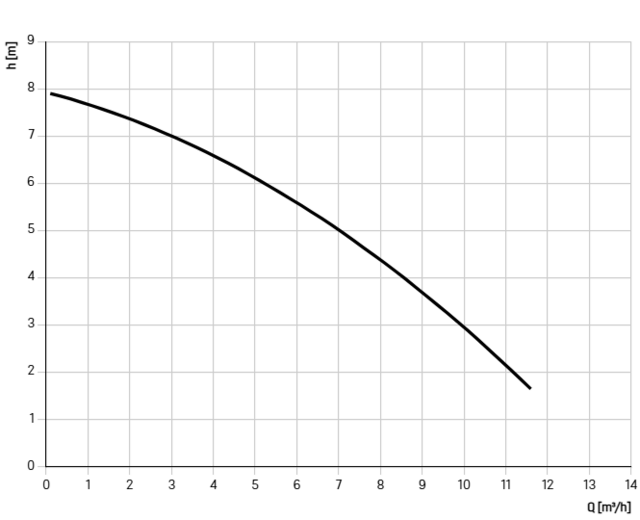

Pumping station Aquapump Medium Duo, GTF 600, 800-1250 mm, B
The pumping station without sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. Variant Type of system: duo pump Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Chamber system: LW 600 General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Modular set for assembly on site System type: Duo ATEX: no Dimensions Net weight: 130 kg Gross weight: 142 kg Groundwater resistant from lower edge of base section: 2000 mm Installation depth: 800 - 1250 mm Type of height adjustability: vertically adjustable upper section Length: 806 mm Width: 806 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1220 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 100 Venting connection (DN): 100 Distance from centre of outlet pipe to tank bottom: 482 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of inlet pipe to tank bottom: 455 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Clear width of tank (LW): 600 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron Colour of cover: black Width of cover: 648 mm Height of cover: 103 mm Length of cover: 648 mm Locking: unlocked Load class: B 125 (EN 124) Pumping device Pump: GTF 600 Number of pumps: 2 Weight, pump: 6 kg Connection type: coded plug Rated current: 2,7 A Protection class: I Insulation class: F Cos phi - power factor: 0,91 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 2,7 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Basic alarm unit with electronic probe | 20222 | Vezi |
 | Basic alarm unit with optical probe | 20223 | Vezi |
 | Compressor set for air bubbling | 28048 | Vezi |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Vezi |
 | Connection box for level sensor extension | 28799 | Vezi |
 | Spare part set, optical probe 5 m cable | 80888 | Vezi |
 | Cable accessories Extension for probe | 80889 | Vezi |
 | Cable accessories Extension for pump | 80891 | Vezi |
 | Installation set Thermostat, Hygrostat | 97713 | Vezi |
 | Outdoor Cabinet W: 590 mm,for installation control units | 97714 | Vezi |
 | Warning beacon for outdoor cabinet | 97715 | Vezi |
| Outdoor Cabinet W: 460 mm, for installation control unit | 97716 | Vezi |
| Outdoor cabinet W: 785 mm,for installation control units | 97723 | Vezi | |
| Outdoor Cabinet W: 1115mm,for installation control units | 97724 | Vezi |
| Title | Item no. | ||
|---|---|---|---|
 | Splash guard set for optical probe | 28706 | Vezi |
 | Control unit Comfort Duo, 230 V | 28746 | Vezi |
 | One-handed closure for backflow preventer | 680018 | Vezi |
 | Battery 9 V block | 680034 | Vezi |
 | Seal for pressure pipe connection | 680067 | Vezi |
 | Pressure hose Sold by the metre, 6x4 mm 100 | 680071 | Vezi |
 | Submersible pressure switch without hose | 680108 | Vezi |
 | Clamping ring for upper sections d: 600 mm | 680276 | Vezi |
 | Riser 800-1250 mm, from 02/2016 | 680449 | Vezi |
 | Backflow preventer with non-return flap | 680457 | Vezi |
 | Pump connection for pumping stations, from 01/2016 | 680476 | Vezi |
 | Pump connection Duo, suitable for pumping stations | 680480 | Vezi |
 | Seal set 2 non-return flaps, 4 seals | 680491 | Vezi |
 | One-handed closure for threaded connection | 680698 | Vezi |
 | Sensor clamp for level sensor & subm. press. switch | 680729 | Vezi |
| Screw set for intake cage, GTF 500 | 680769 | Vezi | |
 | Replacement pump GTF 600 without float switch | 680881 | Vezi |
 | Impeller GTF 600, free passage 30 mm | 680887 | Vezi |
 | Spiral housing GTF 600, free passage 30 mm | 680888 | Vezi |
 | Pump stand GTF 600, free passage 30 mm | 680889 | Vezi |
 | Adapter Set optical probe | 80892 | Vezi |
 | Spare part set, optical probe 15 m cable | 80988 | Vezi |
 | Seal for pipe penetration, DN 100 | 850117 | Vezi |
 | Seal for upper sections d: 600 mm | 860116 | Vezi |
 | Cover plate Class B, grey iron with concrete filling | 860131 | Vezi |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Control unit (schaltgeraet): Comfort
- TÜV test mark (pruefzeichen):
ID 1111241937
- Installation situation (einbausituation):
underground installation
- Load class (belastungsklasse): B 125 (EN 124)
- Pump (pumpe): GTF 600
- Installation depth (einbautiefe): 800 mm
- Impeller type (laufrad_typ): Multi-vane impeller
- Inlet nominal size (DN) (zulauf_nennweite_dn): 100 mm
