Pumping station Aquapump Medium

Duo, GTF 1200, 1800-2250 mm, D

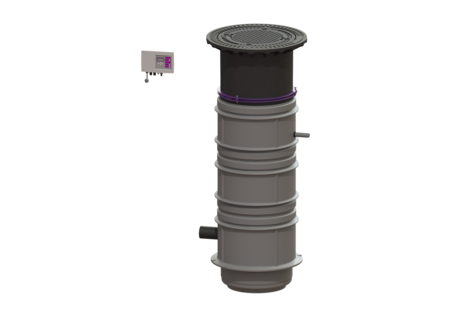

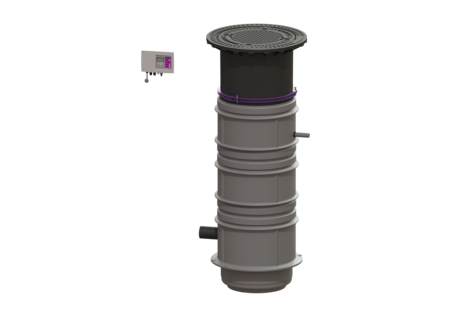

KESSEL Pumping station Aquapump Medium, Duo, wastewater without sewage, load class D 400, installation depth 1800 - 2250 mm, height 50 mm, cover length 680 mm, max. inrush current 14,9 A, with 2 submersible GTF 1200 pumps, level measurement pneumatic

  • Maximum safety
  • Preconfigured in the factory
  • LW 600 chamber system suitable for underground installation
Item no. 826831D
GTIN 4026092045688
Price group 60

Pumping station Aquapump Medium Duo, GTF 1200, 1800-2250 mm, D
The pumping station without sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. Variant Type of system: duo pump Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Chamber system: LW 600 General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Modular set for assembly on site System type: Duo Dimensions Net weight: 167 kg Gross weight: 179 kg Groundwater resistant from lower edge of base section: 2000 mm Installation depth: 1800 - 2250 mm Type of height adjustability: vertically adjustable upper section Length: 806 mm Width: 806 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 2220 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 100 Venting connection (DN): 100 Distance from centre of outlet pipe to tank bottom: 1394 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of inlet pipe to tank bottom: 455 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 600 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron with concrete filling Colour of cover: black Width of cover: 680 mm Height of cover: 50 mm Length of cover: 680 mm Locking: unlocked Load class: D 400 (EN 124) Pumping device Pump: GTF 1200 Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Rated current: 6,2 A Length of mains cable for pump: 10 m Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 6,2 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Splash guard set for optical probe 28706 Vezi
Control unit Comfort Duo 230V 28746 Vezi
One-handed closure for backflow preventer 680018 Vezi
Battery 9 V block 680034 Vezi
Cover plate Class D, grey cast iron 680059 Vezi
Seal for pressure pipe connection 680067 Vezi
Pressure hose Sold by the metre, 6x4 mm 100 680071 Vezi
Submersible pressure switch without hose 680108 Vezi
Clamping ring for upper sections d: 600 mm 680276 Vezi
Pump stand for pumping stations 680362 Vezi
Spiral housing for passage 30 mm 680363 Vezi
Impeller for passage 30 mm 680366 Vezi
Riser 1800-2250 mm, from 02/2016 680451 Vezi
Backflow preventer with non-return flap 680457 Vezi
Pump connection for pumping stations, from 01/2016 680476 Vezi
Pump connection Duo, suitable for pumping stations 680480 Vezi
Seal set 2 non-return flaps, 4 seals 680491 Vezi
Replacement pump Aquadive GTF1200 without float switch, 10 m 680595 Vezi
One-handed closure for threaded connection 680698 Vezi
Sensor clamp for level sensor & subm. press. switch 680729 Vezi
Adapter Set optical probe 80892 Vezi
Optical probe with 3 adap. 15 m 80988 Vezi
Seal for pipe penetration, DN 100 850117 Vezi
Seal for upper sections d: 600 mm 860116 Vezi
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • Load class (belastungsklasse): D 400 (EN 124)
  • Pump (pumpe): GTF 1200
  • Installation depth (einbautiefe): 1.800  mm
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 150  mm
