Pumping station Aquapump Medium

Tronic, GTF 1200, 1300-1750 mm, D

827821D
827821D

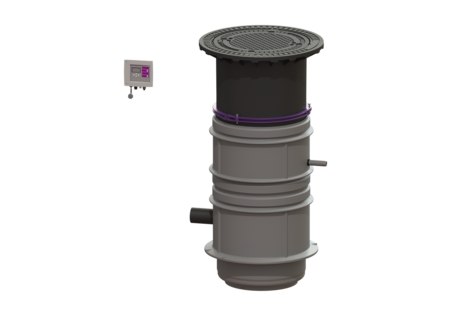

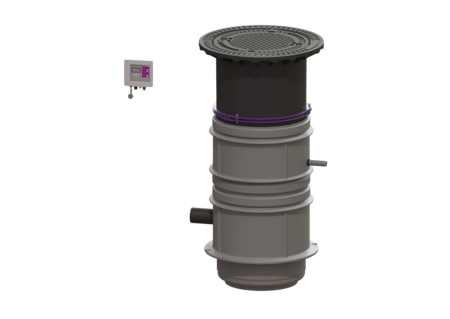

KESSEL Pumping station Aquapump Medium, Tronic, wastewater without sewage, load class D 400, installation depth 1300 - 1750 mm, height 50 mm, max. inrush current 14,9 A, with a submersible GTF 1200 pump, level measurement pneumatic

  • Maximum safety
  • Preconfigured in the factory
  • LW 600 chamber system suitable for underground installation
Item no. 827821D
GTIN 4026092045763
Price group 60

Pumping station Aquapump Medium Tronic, GTF 1200, 1300-1750 mm, D
The pumping station without sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. Variant Type of system: Single unit Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Chamber system: LW 600 General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Modular set for assembly on site System type: Tronic ATEX: no Dimensions Net weight: 155 kg Gross weight: 167 kg Groundwater resistant from lower edge of base section: 2000 mm Installation depth: 1300 - 1750 mm Type of height adjustability: vertically adjustable upper section Length: 806 mm Width: 806 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1720 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 100 Venting connection (DN): 100 Distance from centre of outlet pipe to tank bottom: 894 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of inlet pipe to tank bottom: 455 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 600 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron with concrete filling Colour of cover: black Width of cover: 680 mm Height of cover: 50 mm Length of cover: 680 mm Locking: unlocked Load class: D 400 (EN 124) Pumping device Pump: GTF 1200 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 6,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 6,2 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
28706 Splash guard set for optical probe 28706 Vezi
28731 Control unit Comfort Mono, 230 V 28731 Vezi
680018 One-handed closure for backflow preventer 680018 Vezi
680034 Battery 9 V block 680034 Vezi
680059 Cover plate Class D, grey cast iron 680059 Vezi
680067 Seal for pressure pipe connection 680067 Vezi
680071 Pressure hose Sold by the metre, 6x4 mm 100 680071 Vezi
680108 Submersible pressure switch without hose 680108 Vezi
680276 Clamping ring for upper sections d: 600 mm 680276 Vezi
680362 Pump stand for pumping stations 680362 Vezi
680363 Spiral housing for passage 30 mm 680363 Vezi
680366 Impeller for passage 30 mm 680366 Vezi
680450 Riser 1300 - 1750 mm 680450 Vezi
680457 Backflow preventer with non-return flap 680457 Vezi
680476 Pump connection for pumping stations, from 01/2016 680476 Vezi
680479 Pump connection Mono, suitable for pumping stations 680479 Vezi
680490 Seal set Non-return flap, seals 680490 Vezi
680595 Replacement pump Aquadive GTF1200 without float switch, 10 m 680595 Vezi
680729 Sensor clamp for level sensor & subm. press. switch 680729 Vezi
80892 Adapter Set optical probe 80892 Vezi
80988 Spare part set, optical probe 15 m cable 80988 Vezi
850117 Seal for pipe penetration, DN 100 850117 Vezi
860116 Seal for upper sections d: 600 mm 860116 Vezi
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • Load class (belastungsklasse): D 400 (EN 124)
  • Pump (pumpe): GTF 1200
  • Installation depth (einbautiefe): 1.300  mm
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 150  mm
