Pumping station Aquapump Small

Duo, Basic, GTF 1250

828851
828851
PDF product data sheet

KESSEL Pumping station Aquapump Small, Duo, wastewater without sewage, height 830 mm, control unit function With alarm message, with 2 submersible GTF 1250 pumps, level measurement mechanical, level measurement Float switch

  • Including backflow preventer for the pressure pipe
  • Including openings for inlet, ventilation and cable duct
  • Easy tool-free maintenance
Item no. 828851
GTIN 4026092093009
Price group 20

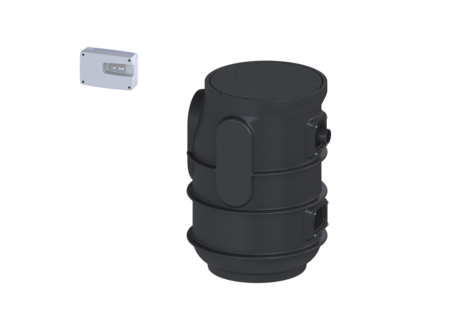

Pumping station Aquapump Small Duo, Basic, GTF 1250
The pumping station without sewagel wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability Variant Type of system: duo pump Installation: Wet installation Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo ATEX: no Dimensions Net weight: 22 kg Gross weight: 31 kg Installation depth: 0 - 830 mm Length: 590 mm Width: 590 mm Height: 830 mm Packaging dimension: length: 900 mm Packaging dimension: width: 900 mm Packaging dimension: height: 954 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 mm Pumping volume: 60 l Coverage features Type of cover: Round cover plate Colour of cover: black Width of cover: 600 mm Length of cover: 615 mm Locking: lockable Load class: up to 300 kg Pumping device Pump: GTF 1250 Number of pumps: 2 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 5,4 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3mWS) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Switching level, float switch OFF: 160 Switching level, float switch ON: 260 Length of mains cable for pump: 10 m Control Control unit: Basic Control unit function: With alarm message Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Potential-free contact: optional Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 5,4 A Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
680018 One-handed closure for backflow preventer 680018 Vezi
680067 Seal for pressure pipe connection 680067 Vezi
680150 Seal for upper section, from 07/2014 680150 Vezi
680475 Pump connection with seal and flap 680475 Vezi
680760 Pump connection Minilift, Aqualift S 680760 Vezi
680762 Turn fastener for pump connection lock 680762 Vezi
680781 Flap housing Duo, with pump connector 680781 Vezi
680801 Cover plate round, incl. screws and seal 680801 Vezi
680962 Pressure pipe DN 32, GTF 1250 680962 Vezi
680966 Replacement pump GTF 1250 without float switch, 10 m 680966 Vezi
680971 Float unit Duo 3 float switches 680971 Vezi
680972 Bracket for pressure pipe, Duo 680972 Vezi
680974 Pump hanger GTF 1250, Duo 680974 Vezi
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Basic
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • Load class (belastungsklasse): up to 300 kg
  • Pump (pumpe): GTF 1250
  • Impeller type (laufrad_typ): Multi-vane impeller
