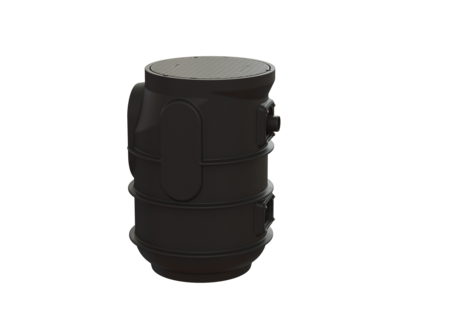

Pumping station Aquapump Small
Mono, Basic, STF 1300-S3
KESSEL Pumping station Aquapump Small, Mono, wastewater for wastewater with and without sewage, Wet installation, with a submersible STF 1300 pump
- Including backflow preventer for the pressure pipe
- Including openings for inlet, ventilation and cable duct
- Easy tool-free maintenance
| Item no. | 829710 |
|---|---|
| GTIN | 4026092083598 |
| Price group | 20 |
Pumping station Aquapump Small Mono, Basic, STF 1300-S3
The pumping station for wastewater with and without sewage is suitable for underground installations and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Including openings for inlet, ventilation and cable duct. Variant Type of system: Single unit Installation: Wet installation Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with and without sewage Installation situation: underground installation System type: Mono Dimensions Net weight: 26 kg Gross weight: 32 kg Length: 615 mm Width: 600 mm Height: 830 mm Packaging dimension: length: 792 mm Packaging dimension: width: 653,81 mm Packaging dimension: height: 916,32 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 Pumping volume: 25 l Coverage features Type of cover: Round cover plate Colour of cover: black Locking: locked Load class: K 3 (EN 1253-1) Pumping device Pump: STF 1300 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Operating voltage: 230 V Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 21 m³/h Max. pumping height: 10 m Speed: 2650 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Type of fuse required (pump): C 16 A Length of mains cable for pump: 10 m Rated current: 6 A Control Motor protection switch: yes Level measurement instrument: Float switch Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Seal for upper section, from 07/2014 | 680150 | Vezi |
 | One-handed closure DN 63 | 680380 | Vezi |
 | Backflow preventer right, with non-return flap | 680382 | Vezi |
 | Non-return flap for Ecolift L/XL | 680630 | Vezi |
 | Cover plate round, incl. screws and seal | 680801 | Vezi |
 | Flap housing with pressure piping, DA: 50 mm | 680802 | Vezi |
 | Replacement pump STF 1300 230 V, with float switch | 680803 | Vezi |
 | Multi-vane impeller for STF 1300 | 680804 | Vezi |
 | Spiral housing for STF 1300 | 680805 | Vezi |
 | Pressure pipe connection for pumping stations Mono | 680807 | Vezi |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Declaration of Performance | |
| Declaration of Conformity |
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
underground installation
- Type of wastewater (abwasserart_de): for wastewater with and without sewage
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Pump (pumpe): STF 1300
- Impeller type (laufrad_typ): Multi-vane impeller
- (schaltgeraet):
