Pumping station Aquapump Small

Mono, Basic, GTF 600

829810
829810
PDF product data sheet

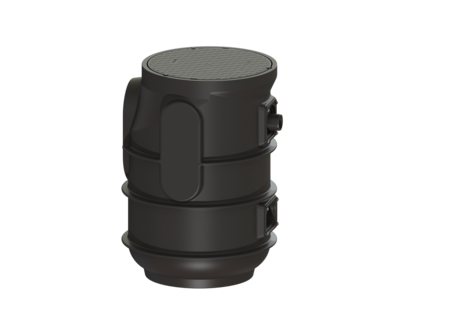

KESSEL Pumping station Aquapump Small, Mono, wastewater without sewage, height 830 mm, with a submersible GTF 600 pump, level measurement Float switch

  • Including backflow preventer for the pressure pipe
  • Including openings for inlet, ventilation and cable duct
  • Easy tool-free maintenance
Item no. 829810
GTIN 4026092092958
Price group 20

Pumping station Aquapump Small Mono, Basic, GTF 600
The pumping station without sewagel wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability Variant Type of system: Single unit Installation: Wet installation Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Mono ATEX: no Dimensions Net weight: 26 kg Gross weight: 32 kg Installation depth: 0 - 830 mm Length: 590 mm Width: 590 mm Height: 830 mm Packaging dimension: length: 800 mm Packaging dimension: width: 700 mm Packaging dimension: height: 950 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 mm Pumping volume: 20 l Coverage features Type of cover: Round cover plate Colour of cover: black Width of cover: 600 mm Length of cover: 615 mm Locking: lockable Load class: up to 300 kg Pumping device Pump: GTF 600 Number of pumps: 1 Weight, pump: 6 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 2,9 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2750 U/min Power P1: 0,65 kW Power P2: 0,4 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Switching level, float switch OFF: 160 Switching level, float switch ON: 260 Length of mains cable for pump: 10 m Control Motor protection switch: yes Level measurement instrument: Float switch Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Rated current: 2,9 A Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
680018 One-handed closure for backflow preventer 680018 Vezi
680067 Seal for pressure pipe connection 680067 Vezi
680150 Seal for upper section, from 07/2014 680150 Vezi
680475 Pump connection with seal and flap 680475 Vezi
680760 Pump connection Minilift, Aqualift S 680760 Vezi
680761 Flap housing Mono, with pump connector 680761 Vezi
680762 Turn fastener for pump connection lock 680762 Vezi
680801 Cover plate round, incl. screws and seal 680801 Vezi
680887 Impeller GTF 600, free passage 30 mm 680887 Vezi
680888 Spiral housing GTF 600, free passage 30 mm 680888 Vezi
680961 Pressure pipe DN 32, GTF 600 680961 Vezi
680963 Replacement pump GTF 600 with float switch, 10 m 680963 Vezi
680967 Pump hanger Mono, GTF 600 680967 Vezi
680969 Bracket for ressure pipe, Mono 680969 Vezi
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Load class (belastungsklasse): up to 300 kg
  • Pump (pumpe): GTF 600
  • Impeller type (laufrad_typ): Multi-vane impeller
  • (schaltgeraet):
