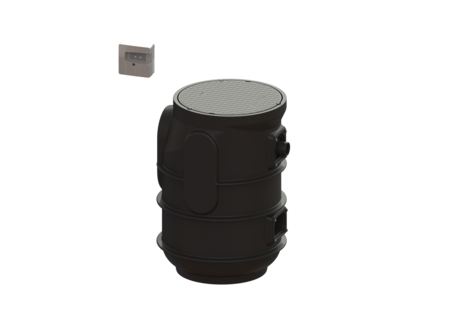

Pumping station Aquapump Small

Tronic, Basic, GTF 600

KESSEL Pumping station Aquapump Small, Tronic, wastewater without sewage, height 830 mm, control unit function With alarm message, with a submersible GTF 600 pump, level measurement mechanical, level measurement Float switch

  • Including backflow preventer for the pressure pipe
  • Including openings for inlet, ventilation and cable duct
  • Easy tool-free maintenance
Item no. 829811
GTIN 4026092092965
Price group 20

Pumping station Aquapump Small Tronic, Basic, GTF 600
The pumping station without sewagel wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability Variant Type of system: Single unit Installation: Wet installation Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Tronic Dimensions Net weight: 22 kg Gross weight: 31 kg Installation depth: 0 - 830 mm Length: 590 mm Width: 590 mm Height: 830 mm Packaging dimension: length: 800 mm Packaging dimension: width: 700 mm Packaging dimension: height: 900 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 mm Pumping volume: 60 l Coverage features Type of cover: Round cover plate Colour of cover: black Width of cover: 600 mm Length of cover: 615 mm Locking: lockable Load class: up to 300 kg Pumping device Pump: GTF 600 Number of pumps: 1 Weight, pump: 6 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 2,9 A Length of mains cable for pump: 10 m Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2750 U/min Power P1: 0,65 kW Power P2: 0,4 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Switching level, float switch OFF: 160 Switching level, float switch ON: 260 Control Control unit: Basic Control unit function: With alarm message Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Potential-free contact: optional Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 2,9 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
One-handed closure for backflow preventer 680018 Vezi
Seal for pressure pipe connection 680067 Vezi
Seal for upper section, from 07/2014 680150 Vezi
Pump connection with seal and flap 680475 Vezi
Pump connection Minilift, Aqualift S 680760 Vezi
Turn fastener for pump connection lock 680762 Vezi
Flap housing Duo, with pump connector 680781 Vezi
Cover plate round, incl. screws and seal 680801 Vezi
Impeller GTF 600, free passage 30 mm 680887 Vezi
Spiral housing GTF 600, free passage 30 mm 680888 Vezi
Pressure pipe DN 32, GTF 600 680961 Vezi
Replacement pump GTF 600 without float switch, 10 m 680964 Vezi
Float unit Mono 2 float switches 680970 Vezi
Bracket for pressure pipe, Duo 680972 Vezi
Pump hanger GTF 600, Duo 680973 Vezi
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Basic
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • Load class (belastungsklasse): up to 300 kg
  • Pump (pumpe): GTF 600
  • Impeller type (laufrad_typ): Multi-vane impeller
