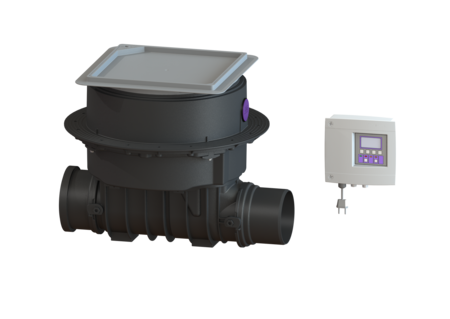

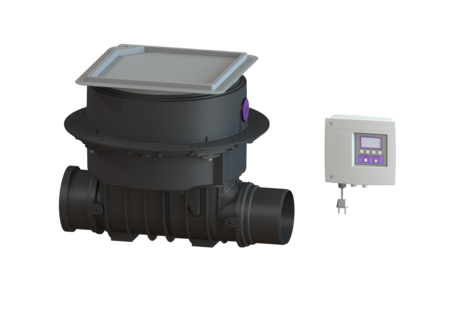

Staufix FKA auto. backwater valve

DN 150, Floor slab, tileable

KESSEL Staufix FKA auto. backwater valve, control unit Comfort, nominal size (DN) 150, wastewater with sewage, locking Lock & Lift, floor slab installation, type of cover tileable cover plate

  • Safe, motor-driven closure system with optical probe
  • Fast, simple and toolless maintenance
  • Available as a complete set or module set
Item no. 84150X
GTIN 4026092046463
Price group 30

Staufix FKA auto. backwater valve DN 150, Floor slab, tileable
The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Thanks to the modular KESSEL system, existing systems can easily be converted to a Pumpfix F backwater pumping station. Variant Emergency closure: yes Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (sensor system must be fitted on site and control unit must be connected) Backwater protection: Type 3 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Cable length: 5 m Dimensions Net weight: 17 kg Gross weight: 22,5 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 656 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Tightness: surface water resistant Max. flooring height: 16 mm Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Connection to the BCS, BAC: yes
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Vezi
Clearance code for potential-free contact 80077 Vezi
Pumpfix F conversion kit DN 100-200, fr. 01/2011, Floor slab 80098 Vezi
Cable accessories 80889 Vezi
Cable accessories Extension for motor 80890 Vezi
Cable accessories Extension for pump 80891 Vezi
Extension section H: 200 mm 83070 Vezi
Extension section H: 234 mm, with flange and mating flange 83073 Vezi
Extension section H: 360 mm, with central flange 83075 Vezi
  Title Item no.
Battery 9 V block 680034 Vezi
Flap holder for motor-driven and mechanical flap 680101 Vezi
Seal for upper section, from 07/2014 680150 Vezi
Seal for cover plate, System 330 mm 686114 Vezi
Staufix test funnel with seal 70214 Vezi
Seal set 70318 Vezi
Staufix Premium FKA cover 80016 Vezi
Staufix Premium FKA cover 80017 Vezi
Motor-driven backwater flap Premium 80038 Vezi
Slide-in flap housing for motorised flap with flap holder 80039 Vezi
Slide-in flap housing with mechanical flap, flap holder 80041 Vezi
Control unit Comfort 230V, Staufix FKA 80071 Vezi
Drive motor plug-in ready, 5 m cable 80076 Vezi
Spare part set, optical probe 5 m cable 80888 Vezi
Adapter Set optical probe 80892 Vezi
Cover plate surface water resistant, tileable 830052 Vezi
Upper section system 400 830065 Vezi
Spigot DN 150, with seal 83083 Vezi
Socket DN 150, with seal 83087 Vezi
  • Nominal size (DN) (nennweite): 150
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Type of cover (abdeckungsart): tileable cover plate
  • Length (laenge): 656  mm
  • Width (breite): 590  mm
  • Backwater protection (rueckstauschutz): Type 3
