Ecolift XL backwater lifting st.

Duo, 2 motor flaps, SPF 4500-S3, Taper

8741071
8741071
PDF product data sheet

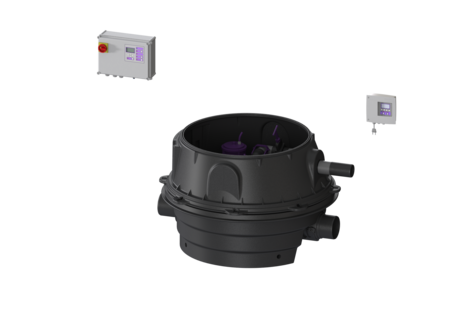

KESSEL Ecolift XL backwater lifting st., wastewater for wastewater with and without sewage, underground installation, duo pump, 2 motor-driven backwater flaps, with 2 submersible SPF 4500-S3 EcoXL pumps, alarm generator with optical probe

  • Wastewater drainage without interruption, even if a power failure occurs, as long as there is no backwater
  • low pump use
  • minimised noise emissions
Item no. 8741071
GTIN 4026092070802
Price group 60

Ecolift XL backwater lifting st. Duo, 2 motor flaps, SPF 4500-S3, Taper
The backwater lifting station for faecal and non-faecal wastewater is equipped with two submersible pumps, two motor-driven closure systems and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. Quick-release closures enable the integrated components to be removed easily. The pipe cross-section is normally open and the water drains to the sewer via natural fall. Backwater is detected by an optical probe, which causes the closure systems to close automatically and there is no longer free passage to the sewer. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater into the sewer. The pressure pipe is a welded PE pipe; with pump SPF 4500, the pressure pipe must also be continued up to a pressure release chamber. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. A redundant control unit also provides additional safety. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. Variant Note on installation depth: Version with lowest installation height Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 70 Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Motor-driven backwater flaps: 2 General characteristics Colour: black Standard: ÖNORM B 2501 Type of wastewater: for wastewater with and without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Backwater protection: Type 6 Approval: Z-53.2-493 Dimensions Net weight: 145,43 kg Gross weight: 164,13 kg Groundwater resistant from lower edge of base section: 3000 mm Vertical drop between inlet and outlet: 15 mm Length: 1379 mm Width: 1200 mm Height: 785 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 950 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Channel: continuous channel Venting connection (DN): 70 Distance pipe bottom outlet to tank bottom: 120 mm Distance pipe bottom inlet to tank bottom: 135 mm Distance from inlet pipe invert to top of tank: 645 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Clear width of entry (LW): 800 mm Pumping volume: 20 l Tank volume: 65 l Pumping device Pump: SPF 4500-S3 EcoXL Number of pumps: 2 Weight, pump: 26 kg Connection type: Direct connection Rated current: 7,5 A Protection class: I Insulation class: F Cos phi - power factor: 0,85 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 45 m³/h Max. pumping height: 21 m Speed: 2850 U/min Power P1: 4,2 kW Power P2: 3,5 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): 3 x C 25 A Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Control Control unit: Comfort Plus with redundancy Motor protection switch: yes Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): 3 x C 25 A
  Title Item no.
8740175 Upper section with cover plate LW 800, Class K 3, tileable 8740175 Vezi
8740176 Upper section with cover plate LW 800, Cl K 3 with waterproof flange 8740176 Vezi
8740177 Upper section with cover plate LW 800, Class A/L15 8740177 Vezi
8740178 Upper section with cover plate LW 800, Class A/L15 w. waterproof flange 8740178 Vezi
8740179 Upper section with cover plate LW 800, Class B 8740179 Vezi
8740180 Upper section Square cover plate, LW 800, Class D 8740180 Vezi
8740181 Upper section with cover plate LW 800, Cl K 3 8740181 Vezi
  Title Item no.
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Vezi
28048 Compressor set for air bubbling 28048 Vezi
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Vezi
80889 Cable accessories Extension for probe 80889 Vezi
80890 Cable accessories Extension for motor 80890 Vezi
97713 Installation set Thermostat, Hygrostat 97713 Vezi
97714 Outdoor Cabinet W: 590 mm,for installation control units 97714 Vezi
97715 Warning beacon for outdoor cabinet 97715 Vezi
97716 Outdoor Cabinet W: 460 mm, for installation control unit 97716 Vezi
97723 Outdoor cabinet W: 785 mm,for installation control units 97723 Vezi
97724 Outdoor Cabinet W: 1115mm,for installation control units 97724 Vezi
  Title Item no.
28706 Splash guard set for optical probe 28706 Vezi
28788 Control unit Comfort Plus Mono/Duo, 400 V, (2x)6,3-10,0 A 28788 Vezi
28791 Control unit Ecolift XL type 6 for redundant valve 28791 Vezi
680034 Battery 9 V block 680034 Vezi
680052 Seal for SPF 1400 - SPF 4500 680052 Vezi
680071 Pressure hose Sold by the metre, 6x4 mm 100 680071 Vezi
680101 Flap holder for motor-driven and mechanical flap 680101 Vezi
680379 Height adapter for Ecolift XL optical probe 680379 Vezi
680380 One-handed closure DN 63 680380 Vezi
680381 Backflow preventer left, with non-return flap 680381 Vezi
680382 Backflow preventer right, with non-return flap 680382 Vezi
680386 Valve key for shut-off valve DN 63 680386 Vezi
680390 Ecolift XL lockable cover Inlet side 680390 Vezi
680391 Ecolift XL lockable cover Outlet side 680391 Vezi
680398 Pump flange Ecolift XL, incl. seal 680398 Vezi
680399 Pump plate Ecolift XL 680399 Vezi
680400 Pressure hose DN 63, L: 367 mm 680400 Vezi
680401 Pressure pipe with shut-off valve left-hand version, angled 680401 Vezi
680402 Pressure pipe with shut-off valve right-hand version, angled 680402 Vezi
680403 Support rib for shut-off valve, slanted support 680403 Vezi
680418 Seal set Ecolift XL 680418 Vezi
680452 Drive motor for clamping on, 10 m cable 680452 Vezi
680455 Spare part set, optical probe 10 m cable 680455 Vezi
680533 Replacement pump pumping station dry installation SPF 4500-S3 680533 Vezi
680827 Immersion pipe for Ecolift XL, 180 mm 680827 Vezi
80038 Backwater flap motor-driven, with flap holder 80038 Vezi
80039 Slide-in flap housing for motorised flap with flap holder 80039 Vezi
  • Type of wastewater (abwasserart_de): for wastewater with and without sewage
  • Control unit (schaltgeraet): Comfort Plus with redundancy
  • TÜV test mark (pruefzeichen): ID 1111241794
  • Installation situation (einbausituation): underground installation

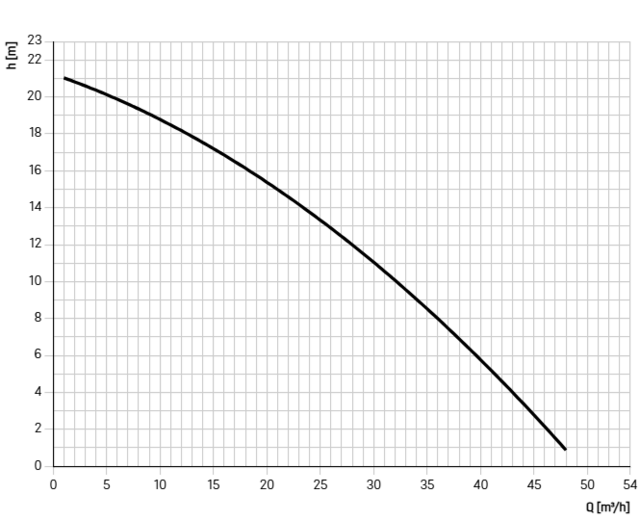

  • Pump (pumpe): SPF 4500-S3 EcoXL
  • Operating voltage (betriebsspannung): 400  V
