Pumping station Aquapump XL
Mono, SPF 1500-S3, D0

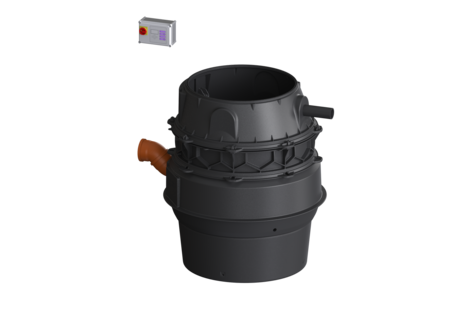

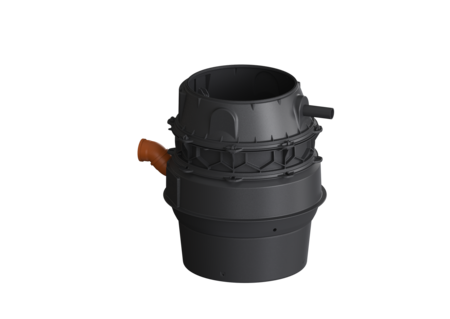

KESSEL Pumping station Aquapump XL, Tronic, wastewater with sewage, underground installation, height 1500 mm, with a submersible SPF 1500-S3 pump, operating mode S3 - 50 %, level measurement pneumatic
- Maximum safety
- Flexible installation
- Hygienic advantages for maintenance and repair
| Item no. | 8742013 |
|---|---|
| GTIN | 4026092069493 |
| Price group | 60 |
Pumping station Aquapump XL Mono, SPF 1500-S3, D0
The pumping station for wastewater with and without sewage is equipped with one or two submersible pumps, a backflow preventer and a shut-off valve for the pressure pipe. The collection tank made of permanently resistant polymer (PE) has a closed pump tank (dry installation) with a screwed-on access cover. The station is controlled by a user-friendly control unit. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. In the Software Centre, you will find the files available for your system relating to the commissioning, configuration and updating of replacement devices. Visit the Software Centre: www.kessel.de/software-center Variant Note on installation depth: Version with lowest installation height Type of system: Single unit Shut-off valve: Shut-off valve made of polymer Access steps: yes Installation: Dry installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Tronic Dimensions Net weight: 177 kg Gross weight: 200 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1295 mm Width: 1295 mm Height: 1500 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1435 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 1343 mm Distance pipe bottom inlet to tank bottom: 753 mm Distance from centre of inlet pipe to tank bottom: 833 mm Distance from inlet pipe invert to top of tank: 747 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 Number of inlets: 1 Clear width of tank (LW): 1000 mm Clear width of entry (LW): 800 mm Pumping volume: 160 l Tank volume: 335,00 l Pumping device Pump: SPF 1500-S3 Number of pumps: 1 Weight, pump: 24 kg Protection class: I Insulation class: F Cos phi - power factor: 0,77 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 40 m³/h Max. pumping height: 8 m Speed: 1415 U/min Power P1: 1,4 kW Power P2: 1,1 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Rated current: 2,7 A Control Control unit: Connect Pro Operating voltage: 400 V Mains frequency: 50/60 Hz Rated current (max.): 9 A Output power (max.): 6,2 kW Performance Active mode: 3,0 W Protection class control unit: IP 54 Motor protection: yes (electronically) Type of fuse required (control unit): C 16 A Self-diagnosis system (SDS): yes Main switch: yes Battery buffering: yes Multi-line display: yes Second Screen: yes (Wi-Fi) Log book function: yes Modbus (GLT or gateway): yes (RTU) Potential-free contact: yes (2) Alarm sensor: yes Ext. audible alarm: yes Level measurement instrument: Immersion pipe Type of level measurement: pneumatic SonicControl Option: yes Filling Option: yes USB interface: no
| Title | Item no. | ||
|---|---|---|---|
 | Level sensor conversion kit 10 m, with immersion pipe 288 mm | 681042 | Vezi |
| Level sensor conversion kit 30 m, with immersion pipe 288 mm | 681043 | Vezi |
 | Upper section with cover plate LW 800, Class K 3, tileable | 8740175 | Vezi |
 | Upper section with cover plate LW 800, Cl K 3 with waterproof flange | 8740176 | Vezi |
 | Upper section with cover plate LW 800, Class A/L15 | 8740177 | Vezi |
 | Upper section with cover plate LW 800, Class A/L15 w. waterproof flange | 8740178 | Vezi |
 | Upper section with cover plate LW 800, Class B | 8740179 | Vezi |
 | Upper section Square cover plate, LW 800, Class D | 8740180 | Vezi |
 | Upper section with cover plate LW 800, Cl K 3 | 8740181 | Vezi |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Alarm unit with electronic probe | 20222 | Vezi |
 | Alarm unit with optical probe | 20223 | Vezi |
 | Compressor set for air bubbling | 28048 | Vezi |
 | Clamp connector for pressure pipe, DN 80/80 | 28090 | Vezi |
 | Clamp connector for pressure pipe, DN 50/50 | 28091 | Vezi |
 | Clamp connector for pressure pipe, DN 50/80 | 28092 | Vezi |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Vezi |
 | Connection box for level sensor extension | 28799 | Vezi |
 | Intermediate section 250 mm, for chamber module LW 1000 | 680370 | Vezi |
 | Intermediate section 500 mm, for chamber module LW 1000 | 680371 | Vezi |
 | Spare part set, optical probe 5 m cable | 80888 | Vezi |
 | Cable accessories Extension for probe | 80889 | Vezi |
 | Outdoor housing, Width: 600 mm | 977060 | Vezi |
 | Outdoor housing, Width: 800 mm | 977080 | Vezi |
 | Outdoor housing, Width: 1125 mm | 977112 | Vezi |
 | Installation set Thermostat, Hygrostat | 97713 | Vezi |
 | Warning beacon for outdoor cabinet | 97715 | Vezi |
| Title | Item no. | ||
|---|---|---|---|
 | Replacement set pump flange with screw set, flange gasket | 28051 | Vezi |
 | Battery 9 V block | 680034 | Vezi |
 | Seal Pump flange | 680045 | Vezi |
 | Screw set V2A, 14 each | 680047 | Vezi |
 | Pump flange SPF 1400 - SPF 4500 | 680050 | Vezi |
 | Seal for SPF 1400 - SPF 4500 | 680052 | Vezi |
 | Flap set Rolling ring, flap, flap holder | 680053 | Vezi |
 | Pump drive SPF 1500 400 V, S3, 10 m cable | 680098 | Vezi |
 | Immersion pipe for Aqualift XL, 280 mm | 680388 | Vezi |
 | Flap housing for Duo systems, with 2 shut-off valves | 680419 | Vezi |
 | Cleaning cover screwed, DN 160 | 680421 | Vezi |
 | Seal set Pump flange | 680422 | Vezi |
 | Pressure piping DN 90 | 680446 | Vezi |
 | Cover for pump flange, d: 220 mm | 680460 | Vezi |
 | Control unit Connect Pro Mono, 400V | 681352 | Vezi |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Approval | |
| Declaration of Performance | |
| Declaration of Conformity |
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): with sewage
- Control unit (schaltgeraet): Connect Pro
- Installation situation (einbausituation):
underground installation
- Alarm sensor (alarmgeber): yes
- Pump (pumpe): SPF 1500-S3
- Impeller type (laufrad_typ): Multi-vane impeller
