Pump installation kit Retrofit S
Duo, GTF 500-S1, 230V

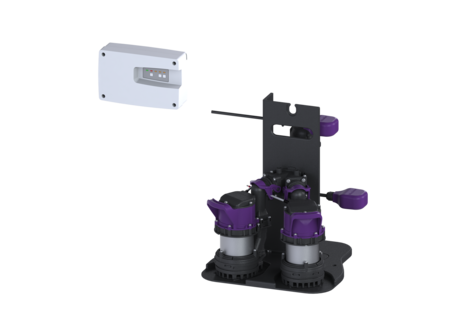

KESSEL Pump installation kit Retrofit S Duo, wastewater without sewage, installation in on-site collecting tank, with 2 submersible GTF 500 pumps, alarm generator with Float switch, Backflow preventer integrated
- Quick installation thanks to pre-assembled components
- Flexible and space-saving installation
- Suitable for all common pressure pipes
| Item no. | 8744050 |
|---|---|
| GTIN | 4026092109496 |
| Price group | 60 |
Pump installation kit Retrofit S Duo, GTF 500-S1, 230V

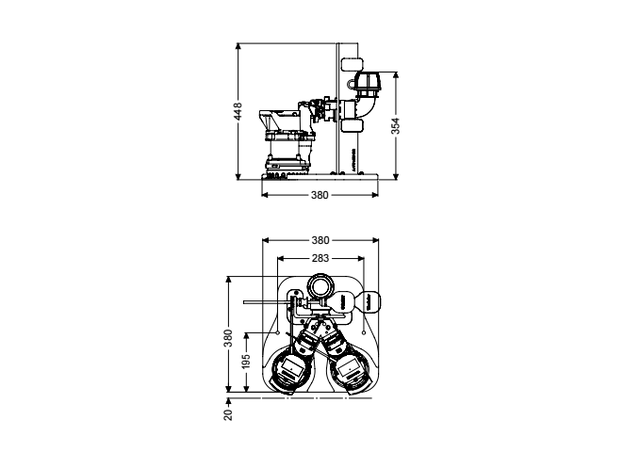

Variant Type of system: duo pump Installation: Wet installation Pump control: Control unit Backflow preventer: integrated General characteristics Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Duo Dimensions Net weight: 17,5 kg Gross weight: 21,29 kg Length: 403 mm Width: 380 mm Height: 448 mm Packaging dimension: length: 586 mm Packaging dimension: width: 386 mm Packaging dimension: height: 400 mm Minimum diameter on site chamber: 800 mm Minimum higth depth pump sump: 450 mm Tank/drain body Pressure pipe connection (DN): 40 Pressure pipe connection (OD): 50 mm Pumping device Pump: GTF 500 Number of pumps: 2 Weight, pump: 6 kg Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Protection class: I Insulation class: F Cos phi - power factor: 0,91 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 8 m Speed: 2700 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Type of fuse required (pump): C 16 A Length of mains cable for pump: 10 m Rated current: 2,5 A Control Control unit: Connect Duo Operating voltage: 230 V Protection class control unit: IP 54 Self-diagnosis system (SDS): yes Battery buffering: yes Potential-free contact: optional Alarm sensor: Float switch Level measurement instrument: Float switch Type of level measurement: mechanical Control unit function: With alarm message Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,4 m Motor protection switch: yes Warning equipment version: acoustic and optical signal
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
![]() | One-handed closure for backflow preventer | 680018 | Vezi |
![]() | Seal for pressure pipe connection | 680067 | Vezi |
![]() | Pump connection with seal and flap | 680475 | Vezi |
![]() | Union nut R1,5" for pump coupling | 680576 | Vezi |
![]() | ON/OFF float switch, 10 m With a bending safeguard and nut | 680578 | Vezi |
![]() | ALARM float switch, 10 m With a bending safeguard and nut | 680579 | Vezi |
![]() | Pressure pipe connection 90° With a DN40 quick-release coupling | 680580 | Vezi |
![]() | Replacement pump GTF 500-S1 Tronic, 10 m cable, 230V | 680587 | Vezi |
![]() | Multi-vane impeller for GTF 500 | 680767 | Vezi |
![]() | Control unit Connect Duo, 230 V | 680818 | Vezi |
| Retrofit S Screw set Incl. Washers and nuts | 681048 | Vezi |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Approval | |
| Declaration of Performance | |
| Declaration of Conformity |
- Type of wastewater (abwasserart_de): without sewage
- Alarm sensor (alarmgeber): Float switch
- Pump (pumpe): GTF 500
- Impeller type (laufrad_typ): Multi-vane impeller
- Control unit (schaltgeraet): Connect Duo
