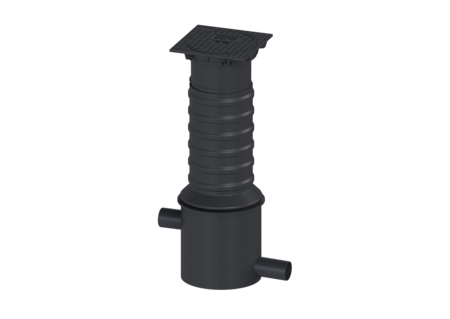

Sampling chamber
d: 450 mm, DN 100, Class D
Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL.
| Item no. | 915881D |
|---|---|
| GTIN | 4026092055410 |
| Price group | 60 |

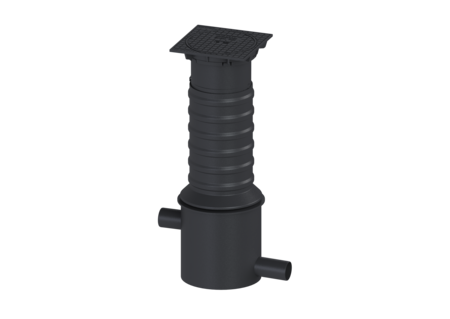

Sampling chamber d: 450 mm, DN 100, Class D
Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. General characteristics Colour: black Material: PE Dimensions Net weight: 47 kg Gross weight: 53 kg Vertical drop between inlet and outlet: 160 mm Installation depth: 950 - 1300 mm Type of height adjustability: vertically adjustable upper section Length: 730 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1200 mm Tank/drain body Distance pipe bottom inlet to tank bottom: 205 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Clear width of tank (LW): 450 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Material (material):
PE
- Nominal size (DN) (nennweite):
100
