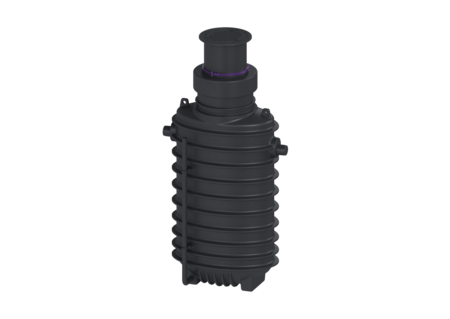

Grease separator EasyClean ground NS 10, Direct, 1020-1720 mm, A/B, right 95100-170B-DR - KESSEL

Grease separator EasyClean ground

NS 10, Direct, 1020-1720 mm, A/B, right

KESSEL Grease separator EasyClean ground, disposal Direct, nominal size 10,00, load class B 125, underground installation, installation depth 1020 - 1720 mm, type of disposal manual, flow direction right

Low odour and clean disposal
Defined disposal point
Complete emptying of the separator

Item no.	95100-170B-DR
GTIN	4026092100844
Price group	60

Grease separator EasyClean ground NS 10, Direct, 1020-1720 mm, A/B, right
The separator for greasy wastewater is suitable for installation in the ground and comes without metallic structural components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap, and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via a service access cover. A direct disposal pipe socket is available for manual disposal. A load distribution slab must be installed on site for load class D. The reinforcement drawings are part of the EBA and are available from KESSEL. The tank is groundwater resistant up to ground level (GL). 20 year polyethylene warranty. Variant Note on installation depth: Ground installation frost-free depth 1700 mm Direction of flow: right Disposal variant: Direct Nominal size (NS): 10,00 Disposal system: Disposal pipe Type of disposal: manual Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Standard: EN 1825: 2004, DIN 4040-100 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 375 kg Gross weight: 380 kg Diameter: 648 mm Installation depth: 1020 - 1720 mm Length: 1870 mm Width: 1150 mm Height: 2795 mm Packaging dimension: length: 3000 mm Packaging dimension: width: 2900 mm Packaging dimension: height: 1240 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 2100 mm Distance pipe bottom inlet to tank bottom: 2170 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: Lock & Lift Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 1100 l Max. grease layer thickness: 385 mm Total volume: 2100 l Contents of sludge trap: 1000 l Storage quantity of grease: 400 l

	Title	Item no.

	Title	Item no.

Title	Item no.
Sampling chamber LW 1000, DN 150, Class B	9151015B	Vezi
Extension section System 400, H: 600 mm, can be shortened	915402	Vezi
Sampling chamber LW 400, DN 100/150, class B	915880B	Vezi
Sampling chamber DN 150, Class B	915882B	Vezi
Access panel for mounting on-wall	917413	Vezi
Access panel for in-wall installation	917414	Vezi
Connection set for underground separators	917421	Vezi
Disposal chamber LW 400, underground separators, A/B	917422B	Vezi
Layer thickness measuring device SonicControl, for grease separators	917821	Vezi
SonicControl cable gland Underground separator installation set	917823	Vezi
Cable extension 10 m, for SonicControl grease separator	917871	Vezi
Cable extension 20 m, for SonicControl grease separator	917872	Vezi
Cable extension 30 m, for SonicControl grease separator	917873	Vezi

Title	Item no.
Clamping ring for upper sections d: 600 mm	680276	Vezi
Removal key for cover plates	680278	Vezi
Seal for cover plate, locked	680323	Vezi
Upper section d: 630 mm, surface water resistant	680324	Vezi
Cover plate LW 600 Lock&Lift, class B, separator	681102	Vezi
Seal d: 630 mm, from 01/2015	860104	Vezi
Goliath lifting tool for chamber covers	917112	Vezi
