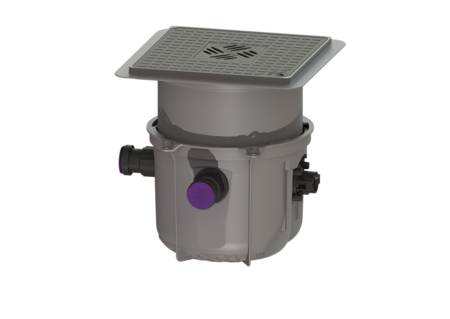

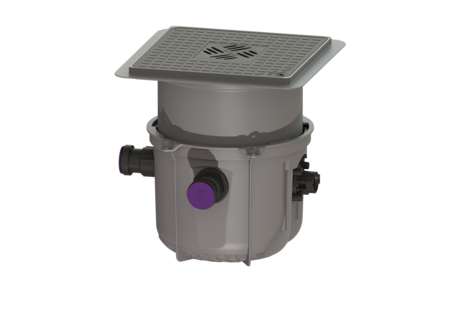

Lifting station Minilift L

KTP 300, resistant, Floor slab, black

280570SC
280570SC
PDF product data sheet

KESSEL Lifting station Minilift L, wastewater without sewage, floor slab installation, Schuko (earthed contact) 2-pin, type of cover Cover plate with slotted cover, with a submersible KTP 300 resistant pump, level measurement mechanical

  • Space-saving installation in the floor slab with integrated drainage function
  • System ready to plug in
  • Easy tool-free maintenance
Item no. 280570SC
GTIN 4026092093511
Price group 20

Lifting station Minilift L KTP 300, resistant, Floor slab, black
The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is preassembled for final installation on site. Variant Type of system: Single unit Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Float switch Backflow preventer: integrated General characteristics Colour: grey Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 10,8 kg Gross weight: 11,8 kg Installation depth: 330 - 460 mm Type of height adjustability: vertically adjustable upper section Length: 460 mm Width: 380 mm Packaging dimension: length: 460 mm Packaging dimension: width: 460 mm Packaging dimension: height: 500 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 50 mm Pumping volume: 7 l Tank volume: 26 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: silver grey Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Pumping device Pump: KTP 300 resistant Number of pumps: 1 Weight, pump: 4 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 1,6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 8 m³/h Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 5 m Control Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
20222 Basic alarm unit with electronic probe 20222 Vezi
20223 Basic alarm unit with optical probe 20223 Vezi
27126 Adapter DN 50/70 27126 Vezi
27602 Adapter DN 100/70 27602 Vezi
28040 Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Vezi
28086 Adapter for pressure pipe connection, DN 32, PE 28086 Vezi
39005 Inlet socket DN 50, with seal, Threaded ring 39005 Vezi
39007 Inlet socket DN 70, with seal, Threaded ring 39007 Vezi
48500 Odour trap Multistop, System 125 48500 Vezi
48550 Odour trap Megastop 48550 Vezi
500101 Hole saw for DN 50/70/100 500101 Vezi
680696 Odour trap for The Ultraflat 79 680696 Vezi
680795 Drain body for cover plate for odour trap 50 mm, black 680795 Vezi
680796 Drain body for cover plate for Multistop, black 680796 Vezi
680797 Drain body for cover plate for odour trap 50 mm, grey 680797 Vezi
680798 Drain body for cover plate for Multistop, grey 680798 Vezi
80074 Potential-free contact Extension set for control units Basic 80074 Vezi
830050 Cover plate surface water resistant, black 366x366mm 830050 Vezi
830052 Cover plate surface water resistant, tileable 830052 Vezi
830070 Extension section deeper installation, with flange 830070 Vezi
850114 Seal for pipe penetration, DN 50 850114 Vezi
850116 Seal for pipe penetration, DN 70 850116 Vezi
  Title Item no.
28039 Impeller KTP 300, with intake cover 28039 Vezi
39005 Inlet socket DN 50, with seal, Threaded ring 39005 Vezi
60101S Slotted cover 138x138 mm, Polymer 60101S Vezi
67007 Locking key for Ecoguss slotted gratings,Lock & Lift 67007 Vezi
680013 Intake cage with push-fit fastener, for KTP 300 680013 Vezi
680014 Seal O-ring for pressure pipe connection 680014 Vezi
680018 One-handed closure for backflow preventer 680018 Vezi
680067 Seal for pressure pipe connection 680067 Vezi
680475 Pump connection with seal and flap 680475 Vezi
680758 Pressure pipe connection with seal and screws 680758 Vezi
680759 Pressure pipe connection KTP 300 680759 Vezi
680760 Pump connection Minilift L, Aqualift S 680760 Vezi
680761 Flap housing Mono, with pump connector 680761 Vezi
680762 Turn fastener for pump connection lock 680762 Vezi
680954 Replacement pump KTP 300 res., Minilift L, free-standing set-up 680954 Vezi
686114 Seal for cover plate, System 330 mm 686114 Vezi
686115 Seal Lip seal, System 330 mm 686115 Vezi
830053 Cover plate black with slotted cover 830053 Vezi
830061 Upper section D=330 mm, height adjustable up to 170 mm 830061 Vezi
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Type of cover (abdeckungsart): Cover plate with slotted cover
  • Load class (belastungsklasse): K 3 (EN 1253-1)
  • Pump (pumpe): KTP 300 resistant
  • (ausfuehrung):
