The Ultraflat 79 drain body

44701
PDF product data sheet

KESSEL The Ultraflat 79 drain body, length 280 mm, locking, design cover, Sealing water height 50 mm, waterproofing layer drain body by

  • including removable odour trap in the upper section
  • Low installation depth
  • Scientifically confirmed sound insulation effect
Item no. 44701
GTIN 4026092080740
Price group 10

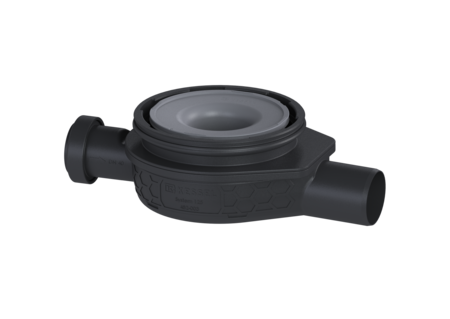

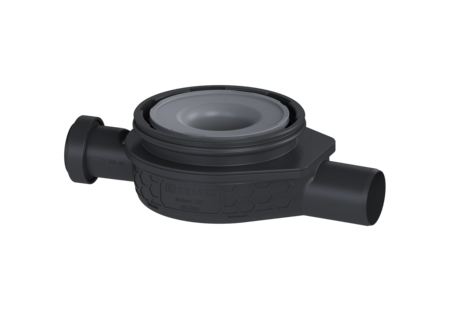

The Ultraflat 79 drain body
The drain body for floor drains. The Ultraflat 79 is made of polymer and is equipped with a removable odour trap for installation in an upper section. Variant System: 125 Seepage opening: optional Position of lateral connection: Type II Sealing water height: 50 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Sustainable: through the use of recycled material Dimensions Net weight: 0,3 kg Gross weight: 0,35 kg Length: 280 mm Width: 163 mm Height: 79 mm Packaging dimension: length: 280,4 mm Packaging dimension: width: 163 mm Packaging dimension: height: 84,9 mm Tank/drain body Number of outlets: 1 Inlet nominal size (DN): 40 Number of inlets: 1 Material of drain body: ABS
  Title Item no.
48176 Upper section Slotted cover, anti-slip, L 15 48176 Vezi
48907 Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Vezi
  Title Item no.
  Title Item no.
27118 Adapter DN 50/40 27118 Vezi
44702 Installation aid set for The Ultraflat 54 & 79 drain body 44702 Vezi
44703 Clip flange The Ultraflat 79, Ecoguss, Practicus 44703 Vezi
44704 Hair filter for The Ultraflat 54 & 79, System 125 44704 Vezi
48403 Extension section H: 140 mm, with glued flange 48403 Vezi
48404 Extension section H: 147 mm, with pressure sealing flange 48404 Vezi
48500 Odour trap Multistop, System 125 48500 Vezi
48550 Odour trap Megastop 48550 Vezi
48900 Extension section H: 120 mm, with glued flange 48900 Vezi
48987 Extension section H: 136 mm, without inlet 48987 Vezi
48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
  Title Item no.
680696 Odour trap for The Ultraflat 79 680696 Vezi
  • Nominal size (DN) (nennweite): 50
  • Material of drain body (material_grundkoerper): ABS
  • TÜV test mark (pruefzeichen): ID 1111243495
