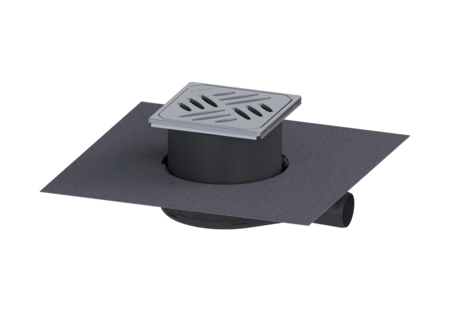

The Ultraflat 54 floor drain

DN 40, WaD, Des grating

44740.62M
44740.62M
PDF product data sheet

KESSEL The Ultraflat 54 floor drain, cover length 120 mm, nominal size (DN) 40, type of cover Design cover, odour trap included, waterproofing layer drain body by Factory-fitted sealing collar (WaD) according to DIN 18534, load class L 15

  • including removable odour trap in the upper section
  • Low installation depth
  • Scientifically confirmed sound insulation effect
Item no. 44740.62M
GTIN 4026092080771
Price group 10

    The Ultraflat 54 floor drain DN 40, WaD, Des grating
    The Ultraflat 54 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Open seepage water opening, no flooding of the waterproofing level in the event of build-up. Variant System: 125 Seepage opening: optional Waterproofing layer on the drain body: Factory-fitted sealing collar (WaD) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 22 mm General characteristics Nominal size (DN): 40 Outer diameter (OD): 40 mm ATEX: no Odour trap: included Dimensions Vertical adjustment: 63 - 116 mm Net weight: 0,86 kg Gross weight: 1,02 kg Type of height adjustability: vertically adjustable upper section Length: 246 mm Width: 200 mm Height: 54 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Locking: unlocked Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    44702 Installation aid set for The Ultraflat 54 & 79 drain body 44702 Vezi
    44704 Hair filter for The Ultraflat 54 & 79, System 125 44704 Vezi
    48500 Odour trap Multistop, System 125 48500 Vezi
    48550 Odour trap Megastop 48550 Vezi
    48987 Extension section H: 136 mm, without inlet 48987 Vezi
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
      Title Item no.
    44740M The Ultraflat 54 drain body DN40, WaD, Odour trap 22 mm 44740M Vezi
    48225 Upper section Kessel design cover, 304 SST, L 15 48225 Vezi
    680227 Design cover KESSEL, stainless steel 680227 Vezi
    680228 Design cover Oval, stainless steel 680228 Vezi
    680229 Design cover Cross, stainless steel 680229 Vezi
    680230 Design cover Parade, stainless steel 680230 Vezi
    680231 Design cover Festival, stainless steel 680231 Vezi
    680232 Design cover Spot, stainless steel 680232 Vezi
    680233 Design cover Slot, stainless steel 680233 Vezi
    680234 Design cover Sticks, stainless steel 680234 Vezi
    680695 Odour trap for The Ultraflat 54 680695 Vezi
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
