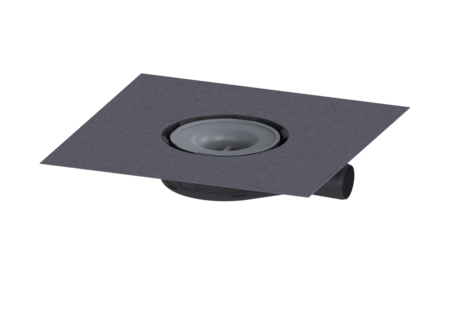

The Ultraflat 54 drain body

DN40, WaD, Odour trap 22 mm

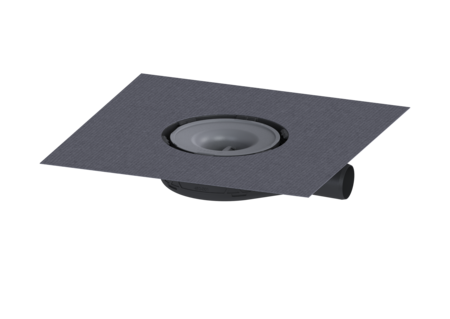

44740M
44740M
PDF product data sheet

KESSEL The Ultraflat 54 drain body, length 246 mm, outside diameter (OD) 40 mm, locking, design cover, Sealing water height 22 mm, waterproofing layer drain body by Factory-fitted sealing collar (WaD) according to DIN 18534

  • including removable odour trap in the upper section
  • Low installation depth
  • Scientifically confirmed sound insulation effect
Item no. 44740M
GTIN 4026092080474
Price group 10

    The Ultraflat 54 drain body DN40, WaD, Odour trap 22 mm
    The drain body for floor drains. The Ultraflat 54 is made of polymer and is equipped with a removable odour trap for installation in an upper section. Open seepage water opening, no flooding of the waterproofing level in the event of build-up. Variant System: 125 Seepage opening: optional Waterproofing layer on the drain body: Factory-fitted sealing collar (WaD) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 22 mm General characteristics Nominal size (DN): 40 Outer diameter (OD): 40 mm ATEX: no Odour trap: included Dimensions Net weight: 0,38 kg Gross weight: 0,42 kg Length: 246 mm Width: 200 mm Height: 54 mm Packaging dimension: length: 315 mm Packaging dimension: width: 315 mm Packaging dimension: height: 56,1 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS
      Title Item no.
    48165 Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Vezi
    48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Vezi
    48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Vezi
    48202 Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Vezi
    48203 Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Vezi
    48209 Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Vezi
    48211 Upper section tileable, 304 SST, K 3 48211 Vezi
    48218 Upper section Slot design cover, 304 SST, K 3 48218 Vezi
    48219 Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Vezi
    48220 Upper section Spot design cover, 304 SST, K 3 48220 Vezi
    48221 Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Vezi
    48225 Upper section Kessel design cover, 304 SST, L 15 48225 Vezi
    48226 Upper section Oval design cover, 304 SST, L 15 48226 Vezi
    48227 Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Vezi
    48228 Upper section Oval design cover, 316 SST, L 15 48228 Vezi
    48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Vezi
      Title Item no.
      Title Item no.
    44702 Installation aid set for The Ultraflat 54 & 79 drain body 44702 Vezi
    44704 Hair filter for The Ultraflat 54 & 79, System 125 44704 Vezi
    48500 Odour trap Multistop, System 125 48500 Vezi
    48550 Odour trap Megastop 48550 Vezi
    48987 Extension section H: 136 mm, without inlet 48987 Vezi
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
      Title Item no.
    • Material of drain body (material_grundkoerper): ABS
