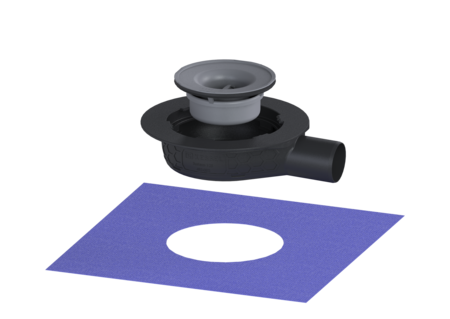

The Ultraflat 54 drain body

DN 50, enclWPM, Odour trap 22 mm

KESSEL The Ultraflat 54 drain body, length 246 mm, outside diameter (OD) 50 mm, locking, design cover, Sealing water height 22 mm, waterproofing layer drain body by Enclosed sealing collar to be glued (bd) according to DIN 18534

  • including removable odour trap in the upper section
  • Low installation depth
  • Scientifically confirmed sound insulation effect
Item no. 44750
GTIN 4026092080726
Price group 10

    The Ultraflat 54 drain body DN 50, enclWPM, Odour trap 22 mm
    The drain body for floor drains. The Ultraflat 54 is made of polymer and is equipped with a removable odour trap for installation in an upper section. Variant System: 125 Seepage opening: optional Waterproofing layer on the drain body: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W2-I Sealing water height: 22 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Net weight: 0,36 kg Gross weight: 0,4 kg Length: 246 mm Width: 200 mm Height: 54 mm Packaging dimension: length: 245,7 mm Packaging dimension: width: 200,6 mm Packaging dimension: height: 59,2 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Odour trap: included
      Title Item no.
    Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Vezi
    Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Vezi
    Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Vezi
    Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Vezi
    Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Vezi
    Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Vezi
    Variofix upper section Slotted cover, 316 SST, K 3 48206 Vezi
    Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Vezi
    Upper section tileable, 304 SST, K 3 48211 Vezi
    Upper section Slot design cover, 304 SST, K 3 48218 Vezi
    Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Vezi
    Upper section Spot design cover, 304 SST, K 3 48220 Vezi
    Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Vezi
    Upper section Kessel design cover, 304 SST, L 15 48225 Vezi
    Upper section Oval design cover, 304 SST, L 15 48226 Vezi
    Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Vezi
    Upper section Oval design cover, 316 SST, L 15 48228 Vezi
    Variofix upper section Design cover Slot, 304 st., K 3 48618 Vezi
    Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Vezi
    Variofix upper section Designrost Spot, V2A, K 3 48620 Vezi
    Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Vezi
    Variofix upper section Designrost Kessel, V2A, L 15 48625 Vezi
    Variofix upper section Designrost Oval, V2A, L 15 48626 Vezi
    Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Vezi
    Variofix upper section Designrost Oval, V4A, L 15 48670 Vezi
    Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Vezi
    Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Vezi
    Variofix upper section tileable, 304 st., K 3 48906 Vezi
    Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Vezi
    Variofix upper section Slotted cover, 304 SST, K 3 48963 Vezi
      Title Item no.
      Title Item no.
    Adapter DN 50/40 27118 Vezi
    Installation aid set for The Ultraflat 54 & 79 drain body 44702 Vezi
    Hair filter for The Ultraflat 54 & 79, System 125 44704 Vezi
    Odour trap Multistop, System 125 48500 Vezi
    Odour trap Megastop 48550 Vezi
    Extension section H: 136 mm, without inlet 48987 Vezi
    Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
      Title Item no.
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Odour trap (geruchsverschluss): included
