Practicus drain body

Press. fl., DN 100, Horizontal outlet

45119
45119
PDF product data sheet

KESSEL Practicus drain body, type of waterproofing, socket lateral, nominal size (DN) 100, odour trap included, drainage by Point drain, waterproofing layer upper section by Enclosed sealing collar to be glued (bd) according to DIN 18534

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • absolutely corrosion-free and durable material
Item no. 45119
GTIN 4026092033791
Price group 10

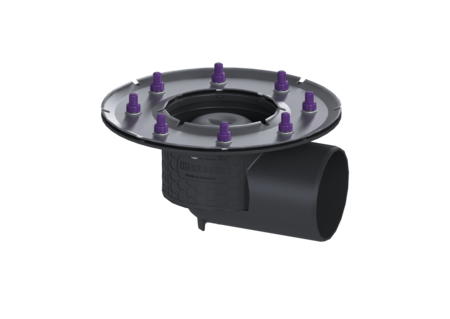

    Practicus drain body Press. fl., DN 100, Horizontal outlet
    In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Sustainable: through the use of recycled material Dimensions Net weight: 1,83 kg Gross weight: 2,12 kg Diameter: 273 mm Height: 147 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Tank/drain body Number of outlets: 1 Connection inlet/outlet sockets: The outlet spigot is suitable for connection to SML pipes. Material of drain body: PP Socket version: lateral
      Title Item no.
    48165 Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Vezi
    48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Vezi
    48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Vezi
    48202 Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Vezi
    48203 Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Vezi
    48204 Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Vezi
    48206 Variofix upper section Slotted cover, 316 SST, K 3 48206 Vezi
    48209 Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Vezi
    48211 Upper section tileable, 304 SST, K 3 48211 Vezi
    48218 Upper section Slot design cover, 304 SST, K 3 48218 Vezi
    48219 Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Vezi
    48220 Upper section Spot design cover, 304 SST, K 3 48220 Vezi
    48221 Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Vezi
    48225 Upper section Kessel design cover, 304 SST, L 15 48225 Vezi
    48226 Upper section Oval design cover, 304 SST, L 15 48226 Vezi
    48227 Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Vezi
    48228 Upper section Oval design cover, 316 SST, L 15 48228 Vezi
    48618 Variofix upper section Design cover Slot, 304 st., K 3 48618 Vezi
    48619 Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Vezi
    48620 Variofix upper section Designrost Spot, V2A, K 3 48620 Vezi
    48621 Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Vezi
    48625 Variofix upper section Designrost Kessel, V2A, L 15 48625 Vezi
    48626 Variofix upper section Designrost Oval, V2A, L 15 48626 Vezi
    48669 Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Vezi
    48670 Variofix upper section Designrost Oval, V4A, L 15 48670 Vezi
    48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Vezi
    48905 Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Vezi
    48906 Variofix upper section tileable, 304 st., K 3 48906 Vezi
    48928M Linearis Comfort upper section L: 750 mm, System 125, WaD, K 3 48928M Vezi
    48929M Linearis Comfort upper section L: 850 mm, System 125, WaD, K 3 48929M Vezi
    48930M Linearis Comfort upper section L: 950 mm, System 125, WaD, K 3 48930M Vezi
    48931M Linearis Comfort upper section L: 1050 mm, System 125, WaD, K 3 48931M Vezi
    48932M Linearis Comfort upper section L: 1150 mm, System 125, WaD, K 3 48932M Vezi
    48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Vezi
    48963 Variofix upper section Slotted cover, 304 SST, K 3 48963 Vezi
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Vezi
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Vezi
    48900 Extension section H: 120 mm, with glued flange 48900 Vezi
    48981 Membrane for System 125, Waterproof concrete 48981 Vezi
    48987 Extension section H: 136 mm, without inlet 48987 Vezi
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): PP
    • Socket version (stutzen_ausfuehrung): lateral
    • Odour trap (geruchsverschluss): included
