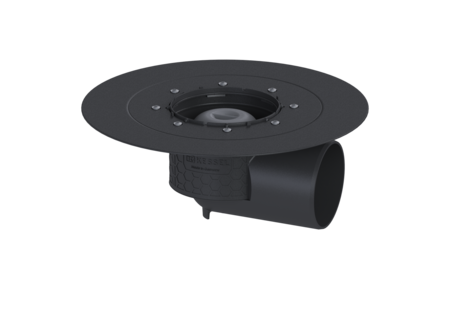

Ecoguss drain body

glued flange, DN 100, Horizontal outlet

48511
48511
PDF product data sheet

KESSEL Ecoguss drain body, nominal size (DN) 100, socket lateral, drainage by Point drain, odour trap included, waterproofing layer drain body by Adhesive flange (suitable for moisture barriers)

  • High-tech Ecoguss composite material
  • Highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48511
GTIN 4026092032589
Price group 40

    Ecoguss drain body glued flange, DN 100, Horizontal outlet
    The Ecoguss base body is used in combination with an attachment piece for point drainage, and is equipped with a removable odor trap, and a protective cover for the construction period. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The glued flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Dimensions Net weight: 1,47 kg Gross weight: 1,97 kg Diameter: 348 mm Height: 145 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 175 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss resistant Socket version: lateral
      Title Item no.
    48176 Upper section Slotted cover, anti-slip, L 15 48176 Vezi
    48194 Upper section Ecoguss Black slotted cover, 150 x 150 mm, K 3 48194 Vezi
    48502 Parking deck drain, Ecoguss DN 125, square, Connection polymer pipe 48502 Vezi
    48504 Parking deck drain, Ecoguss DN 125, round, Connection polymer pipe 48504 Vezi
    48907 Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Vezi
    48965 Variofix upper section Slotted grating, 304 SST, L 15 48965 Vezi
    48977 Ferrofix upper section Sys 125, Slot cover, 146 x 146 mm, K3 48977 Vezi
    54914 Extension section Sys 125, Slotted grating, 150 x 150 mm 54914 Vezi
    54915 Ferrofix upper section Sys 125, Gl fl., slot grat., 146x146 mm 54915 Vezi
    54916 Ferrofix upper section Sys 125, Slotted grating, 200 x 200 mm 54916 Vezi
    54917 Ferrofix upper section Sys 125, Gl fl., slot grat., 200x200 mm 54917 Vezi
    54919 Ferrofix upper section Sys125, Gl fl., Slot cover, 146x146 mm 54919 Vezi
    54921 Ferrofix upper section S125, Gl fl.,6 mm slot grat., 146x146 mm 54921 Vezi
    54922 Ferrofix upper section S125, Gl fl.,6 mm slot grat., 146x146 mm 54922 Vezi
    54923 Ferrofix upper section glue flan. H: 15mm,300x300mm,slot grat. 54923 Vezi
    54926 Ferrofix upper section w/o glue flange, 300x300mm, slot grat. 54926 Vezi
    59010 Ferrofix upper section Sys 125, glue fl, Hole pat cover, K3 59010 Vezi
    59165 Ferrofix upper section Sys 125, Gl fl., Slot cover, 100x100 mm 59165 Vezi
    59192 Ferrofix upper section Sys 125, for PVC, Hole patt cover, L 15 59192 Vezi
    59400 Ferrofix upper section Sys 125, Ladd grt, Class D 59400 Vezi
    6000100 Floor Tray Ferrofix glued flange H: 15mm, 1000x1000mm 6000100 Vezi
    6002100 Slotted Channel Ferrofix glued flange H: 15mm, 17x1000mm, middle 6002100 Vezi
    6002101 Slotted Channel Ferrofix glued flange H: 15mm, 17x1000mm, outer 6002101 Vezi
    6002140 Slotted Channel Ferrofix glued flange H: 15mm, 17x1400mm, middle 6002140 Vezi
    6002141 Slotted Channel Ferrofix glued flange H: 15mm, 17x1400mm, outer 6002141 Vezi
    6002200 Slotted Channel Ferrofix glued flange H: 15mm, 17x2000mm, middle 6002200 Vezi
    6002201 Slotted Channel Ferrofix glued flange H: 15mm, 17x2000mm, outer 6002201 Vezi
    6002300 Slotted Channel Ferrofix glued flange H: 15mm, 17x3000mm, middle 6002300 Vezi
    6002301 Slotted Channel Ferrofix glued flange H: 15mm, 17x3000mm, outer 6002301 Vezi
    6002400 Slotted Channel Ferrofix glued flange H: 15mm, 17x4000mm, middle 6002400 Vezi
    6002401 Slotted Channel Ferrofix glued flange H: 15mm, 17x4000mm, outer 6002401 Vezi
    6015050 Box channel Ferrofix glued flange H: 15mm, 153x511mm 6015050 Vezi
    6015100 Box channel Ferrofix glued flange H: 15mm, 153x1011mm 6015100 Vezi
    6015150 Box channel Ferrofix glued flange H: 15mm, 156x1514mm 6015150 Vezi
    6015200 Box channel Ferrofix glued flange H: 15mm, 156 x 2014 mm 6015200 Vezi
    6015250 Box channel Ferrofix glued flange H: 15mm, 156 x 2514 mm 6015250 Vezi
    6015300 Box channel Ferrofix glued flange H: 15mm, 156 x 3014 mm 6015300 Vezi
    6020050 Box channel Ferrofix glued flange H: 15mm, 200x550mm 6020050 Vezi
    6020100 Box channel Ferrofix glued flange H: 15mm, 200x1050mm 6020100 Vezi
    6020150 Box channel Ferrofix glued flange H: 15mm, 200x1550mm 6020150 Vezi
    6020200 Box channel Ferrofix glued flange H: 15mm, 200x2050mm 6020200 Vezi
    6020250 Box channel Ferrofix glued flange H: 15mm, 200x2550mm 6020250 Vezi
    6020300 Box channel Ferrofix glued flange H: 15mm, 200x3050mm 6020300 Vezi
    6030050 Box channel Ferrofix glued flange H: 15mm, 300x550mm 6030050 Vezi
    6030100 Box channel Ferrofix glued flange H: 15mm, 300x1050mm 6030100 Vezi
    6030150 Box channel Ferrofix glued flange H: 15mm, 300x1550mm 6030150 Vezi
    6030200 Box channel Ferrofix glued flange H: 15mm, 300x2050mm 6030200 Vezi
    6030250 Box channel Ferrofix glued flange H: 15mm, 300x2550mm 6030250 Vezi
    6030300 Box channel Ferrofix glued flange H: 15mm, 300x3050mm 6030300 Vezi
    6035035 Floor Tray Ferrofix glued flange H: 15mm, 350x350mm 6035035 Vezi
    6040050 Box channel Ferrofix glued flange H: 15mm, 400x550mm 6040050 Vezi
    6040100 Box channel Ferrofix glued flange H: 15mm, 400x1050mm 6040100 Vezi
    6040150 Box channel Ferrofix glued flange H: 15mm, 400x1550mm 6040150 Vezi
    6040200 Box channel Ferrofix glued flange H: 15mm, 400x2050mm 6040200 Vezi
    6040250 Box channel Ferrofix glued flange H: 15mm, 400x2550mm 6040250 Vezi
    6040300 Box channel Ferrofix glued flange H: 15mm, 400x3050mm 6040300 Vezi
    6050050 Floor Tray Ferrofix glued flange H: 15mm, 500x500mm 6050050 Vezi
    6050100 Floor Tray Ferrofix glued flange H: 15mm, 500x1000mm 6050100 Vezi
    6060600 Floor Tray Ferrofix glued flange H: 15mm, 600x600mm 6060600 Vezi
    6080800 Floor Tray Ferrofix glued flange H: 15mm, 800x800mm 6080800 Vezi
    6200100 Floor Tray Ferrofix glued flange H: 6mm, 1000x1000mm 6200100 Vezi
    6202100 Slotted Channel Ferrofix glued flange H: 6mm, 17x1000mm, middle 6202100 Vezi
    6202101 Slotted Channel Ferrofix glued flange H: 6mm, 17x1000mm, outer 6202101 Vezi
    6202140 Slotted Channel Ferrofix glued flange H: 6mm, 17x1400mm, middle 6202140 Vezi
    6202141 Slotted Channel Ferrofix glued flange H: 6mm, 17x1400mm, outer 6202141 Vezi
    6202200 Slotted Channel Ferrofix glued flange H: 6mm, 17x2000mm, middle 6202200 Vezi
    6202201 Slotted Channel Ferrofix glued flange H: 6mm, 17x2000mm, outer 6202201 Vezi
    6202300 Slotted Channel Ferrofix glued flange H: 6mm, 17x3000mm, middle 6202300 Vezi
    6202301 Slotted Channel Ferrofix glued flange H: 6mm, 17x3000mm, outer 6202301 Vezi
    6202400 Slotted Channel Ferrofix glued flange H: 6mm, 17x4000mm, middle 6202400 Vezi
    6202401 Slotted Channel Ferrofix glued flange H: 6mm, 17x4000mm, outer 6202401 Vezi
    6220050 Box Channel Ferrofix glued flange H: 6mm, 200x550mm 6220050 Vezi
    6220100 Box Channel Ferrofix glued flange H: 6mm, 200x1050mm 6220100 Vezi
    6220150 Box Channel Ferrofix glued flange H: 6mm, 200x1550mm 6220150 Vezi
    6220200 Box Channel Ferrofix glued flange H: 6mm, 200x2050mm 6220200 Vezi
    6220250 Box Channel Ferrofix glued flange H: 6mm, 200x2550mm 6220250 Vezi
    6220300 Box Channel Ferrofix glued flange H: 6mm, 200x3050mm 6220300 Vezi
    6230050 Box Channel Ferrofix glued flange H: 6mm, 300x550mm 6230050 Vezi
    6230100 Box Channel Ferrofix glued flange H: 6mm, 300x1050mm 6230100 Vezi
    6230150 Box Channel Ferrofix glued flange H: 6mm, 300x1550mm 6230150 Vezi
    6230200 Box Channel Ferrofix glued flange H: 6mm, 300x2050mm 6230200 Vezi
    6230250 Box Channel Ferrofix glued flange H: 6mm, 300x2550mm 6230250 Vezi
    6230300 Box Channel Ferrofix glued flange H: 6mm, 300x3050mm 6230300 Vezi
    6235035 Floor Tray Ferrofix glued flange H: 6mm, 350x350mm 6235035 Vezi
    6240050 Box Channel Ferrofix glued flange H: 6mm, 400x550mm 6240050 Vezi
    6240100 Box Channel Ferrofix glued flange H: 6mm, 400x1050mm 6240100 Vezi
    6240150 Box Channel Ferrofix glued flange H: 6mm, 400x1550mm 6240150 Vezi
    6240200 Box Channel Ferrofix glued flange H: 6mm, 400x2050mm 6240200 Vezi
    6240250 Box Channel Ferrofix glued flange H: 6mm, 400x2550mm 6240250 Vezi
    6240300 Box Channel Ferrofix glued flange H: 6mm, 400x3050mm 6240300 Vezi
    6250050 Floor Tray Ferrofix glued flange H: 6mm, 500x500mm 6250050 Vezi
    6250100 Floor Tray Ferrofix glued flange H: 6mm, 500x1000mm 6250100 Vezi
    6260600 Floor Tray Ferrofix glued flange H: 6mm, 600x600mm 6260600 Vezi
    6280800 Floor Tray Ferrofix glued flange H: 6mm, 800x800mm 6280800 Vezi
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Vezi
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Vezi
    48900 Extension section H: 120 mm, with glued flange 48900 Vezi
    48987 Extension section H: 136 mm, without inlet 48987 Vezi
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Socket version (stutzen_ausfuehrung): lateral
    • Odour trap (geruchsverschluss): included
