Ecoguss project drain glu. flange

DN 100, horiz., Variofix, Design cover

48511.53
48511.53

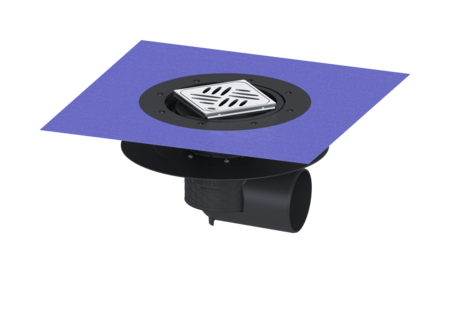

KESSEL Ecoguss project drain glu. flange, nominal size (DN) 100, socket lateral, drainage by Point drain, odour trap included, flooring height max. 24 mm, type of cover Design cover, adjustable in three dimensions

  • High-tech Ecoguss composite material
  • Ecoguss, highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48511.53
GTIN 4026092052945
Price group 40

    Ecoguss project drain glu. flange DN 100, horiz., Variofix, Design cover
    The Ecoguss floor/roof drain is used for point drainage and is equipped with a glued flange, a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, temperature resistant and has a permanently corrosion-free surface. It can be exposed to flames of 100 up to 400 degrees Celsius for short periods. The glued flange with a flange width of 50 mm is suitable for connecting waterproofing layers in accordance with DIN 18534, for all waterproofing classes. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals and is therefore only suitable for use with moisture barriers. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Dimensions Net weight: 2,96 kg Gross weight: 3,92 kg Diameter: 348 mm Type of height adjustability: vertically adjustable upper section Length: 348 mm Width: 348 mm Packaging dimension: length: 586 mm Packaging dimension: width: 386 mm Packaging dimension: height: 400 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss Socket version: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Length of cover: 120 mm Min. flooring height: 10 mm Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Max. flooring height: 24 mm Upper section: adjustable in three dimensions Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Vezi
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Vezi
    48900 Extension section H: 120 mm, with glued flange 48900 Vezi
    48987 Extension section H: 136 mm, without inlet 48987 Vezi
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
      Title Item no.
    27169 Odour trap for Practicus, Ecoguss, Ferrofix 27169 Vezi
    48410 Glued flange with mating flange, ABS, system 125 48410 Vezi
    48511 Ecoguss drain body glued flange, DN 100, Horizontal outlet 48511 Vezi
    48651 Waterproofing membrane for joint sealing, liquid 48651 Vezi
    48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Vezi
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Ecoguss
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
