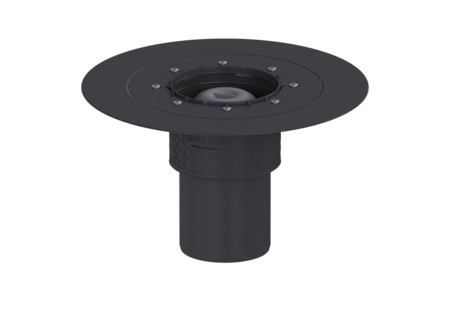

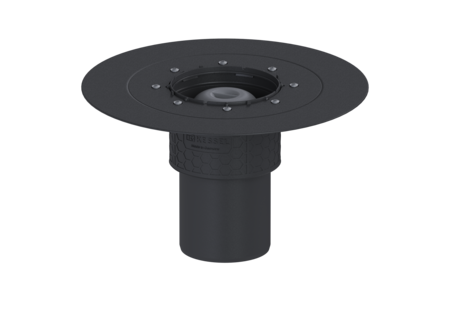

Ecoguss drain body

glued flange, DN 100, Vertical outlet

48611
48611
PDF product data sheet

KESSEL Ecoguss drain body, nominal size (DN) 100, socket vertical, drainage by Point drain, odour trap included, waterproofing layer drain body by Adhesive flange (suitable for moisture barriers)

  • High-tech Ecoguss composite material
  • Highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48611
GTIN 4026092032596
Price group 40

    Ecoguss drain body glued flange, DN 100, Vertical outlet
    The Ecoguss base body is used in combination with an attachment piece for point drainage, and is equipped with a removable odor trap, and a protective cover for the construction period. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The glued flange with a flange width of 50 mm is suitable for connecting waterproofing layers in accordance with DIN 18534, for all waterproofing classes. The loose flange is used for clamping polymer and elastomer sealing sheets as well as for cold bitumen seals and is therefore only suitable for use with moisture barriers. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Approval: Z-19.53-2414,Z-19.17-1719 Odour trap: included Dimensions Net weight: 1,46 kg Gross weight: 2,1 kg Diameter: 348 mm Height: 215 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 250 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss Socket version: vertical
      Title Item no.
    48165 Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Vezi
    48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Vezi
    48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Vezi
    48202 Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Vezi
    48203 Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Vezi
    48204 Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Vezi
    48206 Variofix upper section Slotted cover, 316 SST, K 3 48206 Vezi
    48209 Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Vezi
    48211 Upper section tileable, 304 SST, K 3 48211 Vezi
    48218 Upper section Slot design cover, 304 SST, K 3 48218 Vezi
    48219 Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Vezi
    48220 Upper section Spot design cover, 304 SST, K 3 48220 Vezi
    48221 Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Vezi
    48225 Upper section Kessel design cover, 304 SST, L 15 48225 Vezi
    48226 Upper section Oval design cover, 304 SST, L 15 48226 Vezi
    48227 Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Vezi
    48228 Upper section Oval design cover, 316 SST, L 15 48228 Vezi
    48618 Variofix upper section Design cover Slot, 304 st., K 3 48618 Vezi
    48619 Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Vezi
    48620 Variofix upper section Designrost Spot, V2A, K 3 48620 Vezi
    48621 Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Vezi
    48625 Variofix upper section Designrost Kessel, V2A, L 15 48625 Vezi
    48626 Variofix upper section Designrost Oval, V2A, L 15 48626 Vezi
    48669 Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Vezi
    48670 Variofix upper section Designrost Oval, V4A, L 15 48670 Vezi
    48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Vezi
    48905 Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Vezi
    48906 Variofix upper section tileable, 304 st., K 3 48906 Vezi
    48928M Linearis Comfort upper section L: 750 mm, System 125, WaD, K 3 48928M Vezi
    48929M Linearis Comfort upper section L: 850 mm, System 125, WaD, K 3 48929M Vezi
    48930M Linearis Comfort upper section L: 950 mm, System 125, WaD, K 3 48930M Vezi
    48931M Linearis Comfort upper section L: 1050 mm, System 125, WaD, K 3 48931M Vezi
    48932M Linearis Comfort upper section L: 1150 mm, System 125, WaD, K 3 48932M Vezi
    48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Vezi
    48963 Variofix upper section Slotted cover, 304 SST, K 3 48963 Vezi
      Title Item no.
      Title Item no.
    48100 Fire protection insert Fire-Kit 100, for DN 100 48100 Vezi
    48403 Extension section H: 140 mm, with glued flange 48403 Vezi
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Vezi
    48900 Extension section H: 120 mm, with glued flange 48900 Vezi
    48987 Extension section H: 136 mm, without inlet 48987 Vezi
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
    48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Vezi
    48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Vezi
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Ecoguss
    • Socket version (stutzen_ausfuehrung): vertical
    • Odour trap (geruchsverschluss): included
