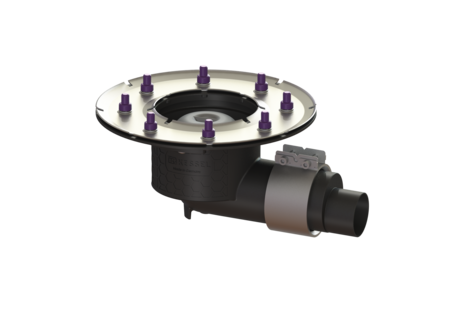

Ecoguss drain body
Press. fl., DN 50, Horizontal outlet
KESSEL Ecoguss drain body, nominal size (DN) 50, socket lateral, drainage by Point drain, odour trap included, waterproofing layer drain body by Press sealing flange (suitable for creating watertight seals)
- High-tech Ecoguss composite material
- Highest fire protection standards
- Scientifically confirmed sound protection effect
Item no. | 48758 |
---|---|
GTIN | 4026092033340 |
Price group | 40 |
Ecoguss drain body Press. fl., DN 50, Horizontal outlet
The Ecoguss base body is used in combination with an attachment piece for point drainage, and is equipped with a removable odor trap, and a protective cover for the construction period. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The glued flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 58 mm Odour trap: included Dimensions Net weight: 2,38 kg Gross weight: 2,67 kg Diameter: 273 mm Height: 147 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss Socket version: lateral
Title | Item no. | ||
---|---|---|---|
Upper section Slot cover, 304 SST, 130 x 130 mm, K3 | 48165 | Vezi | |
Upper section Black slotted cover , 150 x 150 mm, K 3 | 48193 | Vezi | |
Upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48201 | Vezi | |
Upper section Oval des cov, 304 SST, Lock&Lift, L 15 | 48202 | Vezi | |
Upper section Kessel des cov, 316SST, Lock&Lift, L15 | 48203 | Vezi | |
Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 | 48204 | Vezi | |
Variofix upper section Slotted cover, 316 SST, K 3 | 48206 | Vezi | |
Upper section Slot cover, 316 SST, 150 x 150 mm, K3 | 48209 | Vezi | |
Upper section tileable, 304 SST, K 3 | 48211 | Vezi | |
Upper section Slot design cover, 304 SST, K 3 | 48218 | Vezi | |
Upper section Slot des cov, 304 SST, Lock&Lift, K3 | 48219 | Vezi | |
Upper section Spot design cover, 304 SST, K 3 | 48220 | Vezi | |
Upper section Spot des cover, 304SST, Lock&Lift, K3 | 48221 | Vezi | |
Upper section Kessel design cover, 304 SST, L 15 | 48225 | Vezi | |
Upper section Oval design cover, 304 SST, L 15 | 48226 | Vezi | |
Upper section Oval des cover, 316SST, Lock&Lift, L15 | 48227 | Vezi | |

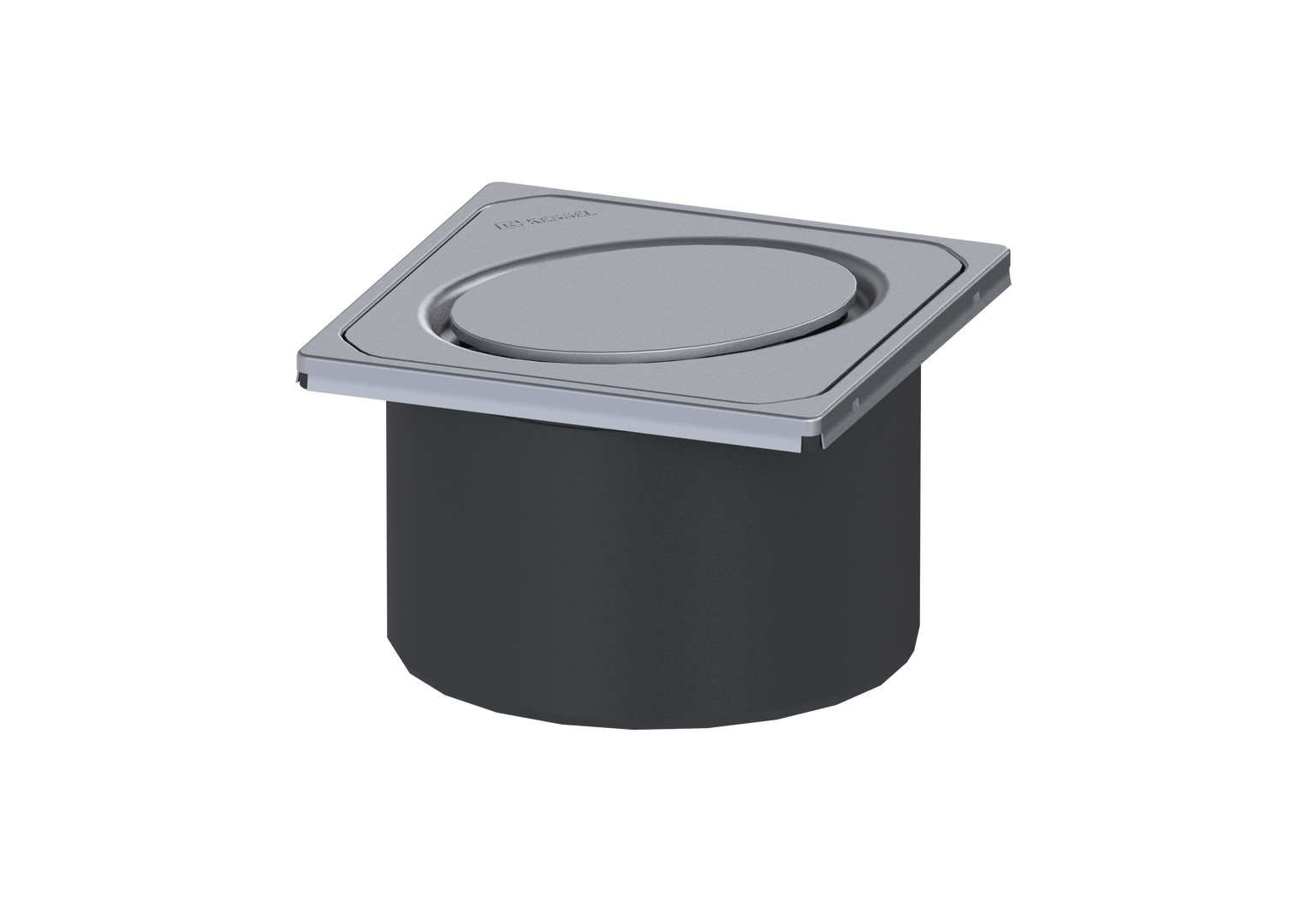

Upper section Oval design cover, 316 SST, L 15 | 48228 | Vezi | |
Variofix upper section Design cover Slot, 304 st., K 3 | 48618 | Vezi | |
Variofix upper section Design cover Slot, 304 st., L&L, K 3 | 48619 | Vezi | |
Variofix upper section Designrost Spot, V2A, K 3 | 48620 | Vezi | |
Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 | 48621 | Vezi | |
Variofix upper section Designrost Kessel, V2A, L 15 | 48625 | Vezi | |
Variofix upper section Designrost Oval, V2A, L 15 | 48626 | Vezi | |
Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 | 48669 | Vezi | |
Variofix upper section Designrost Oval, V4A, L 15 | 48670 | Vezi | |
Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48904 | Vezi | |
Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 | 48905 | Vezi | |
Variofix upper section tileable, 304 st., K 3 | 48906 | Vezi | |
Linearis Comfort upper section L: 750 mm, System 125, WaD, K 3 | 48928M | Vezi | |
Linearis Comfort upper section L: 850 mm, System 125, WaD, K 3 | 48929M | Vezi | |
Linearis Comfort upper section L: 950 mm, System 125, WaD, K 3 | 48930M | Vezi | |
Linearis Comfort upper section L: 1050 mm, System 125, WaD, K 3 | 48931M | Vezi | |
Linearis Comfort upper section L: 1150 mm, System 125, WaD, K 3 | 48932M | Vezi | |
Upper section Slot cover, 304 SST, 150 x 150 mm, K3 | 48950 | Vezi | |
Variofix upper section Slotted cover, 304 SST, K 3 | 48963 | Vezi |
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Extension section H: 140 mm, with glued flange | 48403 | Vezi | |
Extension section H: 147 mm, with pressure sealing flange | 48404 | Vezi | |
Extension section H: 120 mm, with glued flange | 48900 | Vezi | |
Extension section H: 136 mm, without inlet | 48987 | Vezi | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Vezi |
Title | Item no. |
---|
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper): Ecoguss
- Socket version (stutzen_ausfuehrung): lateral
- Odour trap (geruchsverschluss): included
