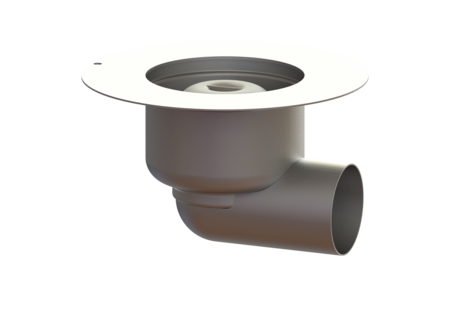

Ferrofix drain body, glued flange

Sys 125, DN 70, horizontal outlet

54300
54300
PDF product data sheet

KESSEL Ferrofix drain body, glued flange, nominal size (DN) 70, System 125, socket lateral, waterproofing layer drain body by Adhesive flange (suitable for moisture barriers)

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • Variably combinable with upper sections
Item no. 54300
GTIN 4026092072349
Price group 70

    Ferrofix drain body, glued flange Sys 125, DN 70, horizontal outlet
    In combination with a System 125 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The glued flange with a flange width of 50 mm is suitable for joint sealings in accordance with DIN 18534, for all waterproofing classes. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 75 mm Odour trap: included Dimensions Net weight: 1,3 kg Gross weight: 1,58 kg Length: 240 mm Width: 240 mm Height: 147 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: lateral
      Title Item no.
    48165 Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Vezi
    48176 Upper section Slotted cover, anti-slip, L 15 48176 Vezi
    48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Vezi
    48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Vezi
    48202 Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Vezi
    48203 Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Vezi
    48204 Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Vezi
    48206 Variofix upper section Slotted cover, 316 SST, K 3 48206 Vezi
    48209 Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Vezi
    48211 Upper section tileable, 304 SST, K 3 48211 Vezi
    48218 Upper section Slot design cover, 304 SST, K 3 48218 Vezi
    48219 Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Vezi
    48220 Upper section Spot design cover, 304 SST, K 3 48220 Vezi
    48221 Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Vezi
    48225 Upper section Kessel design cover, 304 SST, L 15 48225 Vezi
    48226 Upper section Oval design cover, 304 SST, L 15 48226 Vezi
    48227 Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Vezi
    48228 Upper section Oval design cover, 316 SST, L 15 48228 Vezi
    48618 Variofix upper section Design cover Slot, 304 st., K 3 48618 Vezi
    48619 Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Vezi
    48620 Variofix upper section Designrost Spot, V2A, K 3 48620 Vezi
    48621 Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Vezi
    48625 Variofix upper section Designrost Kessel, V2A, L 15 48625 Vezi
    48626 Variofix upper section Designrost Oval, V2A, L 15 48626 Vezi
    48669 Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Vezi
    48670 Variofix upper section Designrost Oval, V4A, L 15 48670 Vezi
    48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Vezi
    48905 Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Vezi
    48906 Variofix upper section tileable, 304 st., K 3 48906 Vezi
    48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Vezi
    54921 Ferrofix upper section S125, Gl fl.,6 mm slot grat., 146x146 mm 54921 Vezi
    54922 Ferrofix upper section S125, Gl fl.,6 mm slot grat., 146x146 mm 54922 Vezi
    54923 Ferrofix upper section glue flan. H: 15mm,300x300mm,slot grat. 54923 Vezi
    54926 Ferrofix upper section w/o glue flange, 300x300mm, slot grat. 54926 Vezi
    59010 Ferrofix upper section Sys 125, glue fl, Hole pat cover, K3 59010 Vezi
    59165 Ferrofix upper section Sys 125, Gl fl., Slot cover, 100x100 mm 59165 Vezi
    59192 Ferrofix upper section Sys 125, for PVC, Hole patt cover, L 15 59192 Vezi
    59400 Ferrofix upper section Sys 125, Ladd grt, Class D 59400 Vezi
    6000100 Floor Tray Ferrofix glued flange H: 15mm, 1000x1000mm 6000100 Vezi
    6002100 Slotted Channel Ferrofix glued flange H: 15mm, 17x1000mm, middle 6002100 Vezi
    6002101 Slotted Channel Ferrofix glued flange H: 15mm, 17x1000mm, outer 6002101 Vezi
    6002140 Slotted Channel Ferrofix glued flange H: 15mm, 17x1400mm, middle 6002140 Vezi
    6002141 Slotted Channel Ferrofix glued flange H: 15mm, 17x1400mm, outer 6002141 Vezi
    6002200 Slotted Channel Ferrofix glued flange H: 15mm, 17x2000mm, middle 6002200 Vezi
    6002201 Slotted Channel Ferrofix glued flange H: 15mm, 17x2000mm, outer 6002201 Vezi
    6002300 Slotted Channel Ferrofix glued flange H: 15mm, 17x3000mm, middle 6002300 Vezi
    6002301 Slotted Channel Ferrofix glued flange H: 15mm, 17x3000mm, outer 6002301 Vezi
    6002400 Slotted Channel Ferrofix glued flange H: 15mm, 17x4000mm, middle 6002400 Vezi
    6002401 Slotted Channel Ferrofix glued flange H: 15mm, 17x4000mm, outer 6002401 Vezi
    6015050 Box channel Ferrofix glued flange H: 15mm, 153x511mm 6015050 Vezi
    6015100 Box channel Ferrofix glued flange H: 15mm, 153x1011mm 6015100 Vezi
    6015150 Box channel Ferrofix glued flange H: 15mm, 156x1514mm 6015150 Vezi
    6015200 Box channel Ferrofix glued flange H: 15mm, 156 x 2014 mm 6015200 Vezi
    6015250 Box channel Ferrofix glued flange H: 15mm, 156 x 2514 mm 6015250 Vezi
    6015300 Box channel Ferrofix glued flange H: 15mm, 156 x 3014 mm 6015300 Vezi
    6020050 Box channel Ferrofix glued flange H: 15mm, 200x550mm 6020050 Vezi
    6020100 Box channel Ferrofix glued flange H: 15mm, 200x1050mm 6020100 Vezi
    6020150 Box channel Ferrofix glued flange H: 15mm, 200x1550mm 6020150 Vezi
    6020200 Box channel Ferrofix glued flange H: 15mm, 200x2050mm 6020200 Vezi
    6020250 Box channel Ferrofix glued flange H: 15mm, 200x2550mm 6020250 Vezi
    6020300 Box channel Ferrofix glued flange H: 15mm, 200x3050mm 6020300 Vezi
    6030050 Box channel Ferrofix glued flange H: 15mm, 300x550mm 6030050 Vezi
    6030100 Box channel Ferrofix glued flange H: 15mm, 300x1050mm 6030100 Vezi
    6030150 Box channel Ferrofix glued flange H: 15mm, 300x1550mm 6030150 Vezi
    6030200 Box channel Ferrofix glued flange H: 15mm, 300x2050mm 6030200 Vezi
    6030250 Box channel Ferrofix glued flange H: 15mm, 300x2550mm 6030250 Vezi
    6030300 Box channel Ferrofix glued flange H: 15mm, 300x3050mm 6030300 Vezi
    6035035 Floor Tray Ferrofix glued flange H: 15mm, 350x350mm 6035035 Vezi
    6040050 Box channel Ferrofix glued flange H: 15mm, 400x550mm 6040050 Vezi
    6040100 Box channel Ferrofix glued flange H: 15mm, 400x1050mm 6040100 Vezi
    6040150 Box channel Ferrofix glued flange H: 15mm, 400x1550mm 6040150 Vezi
    6040200 Box channel Ferrofix glued flange H: 15mm, 400x2050mm 6040200 Vezi
    6040250 Box channel Ferrofix glued flange H: 15mm, 400x2550mm 6040250 Vezi
    6040300 Box channel Ferrofix glued flange H: 15mm, 400x3050mm 6040300 Vezi
    6050050 Floor Tray Ferrofix glued flange H: 15mm, 500x500mm 6050050 Vezi
    6050100 Floor Tray Ferrofix glued flange H: 15mm, 500x1000mm 6050100 Vezi
    6060600 Floor Tray Ferrofix glued flange H: 15mm, 600x600mm 6060600 Vezi
    6080800 Floor Tray Ferrofix glued flange H: 15mm, 800x800mm 6080800 Vezi
    6200100 Floor Tray Ferrofix glued flange H: 6mm, 1000x1000mm 6200100 Vezi
    6202100 Slotted Channel Ferrofix glued flange H: 6mm, 17x1000mm, middle 6202100 Vezi
    6202101 Slotted Channel Ferrofix glued flange H: 6mm, 17x1000mm, outer 6202101 Vezi
    6202140 Slotted Channel Ferrofix glued flange H: 6mm, 17x1400mm, middle 6202140 Vezi
    6202141 Slotted Channel Ferrofix glued flange H: 6mm, 17x1400mm, outer 6202141 Vezi
    6202200 Slotted Channel Ferrofix glued flange H: 6mm, 17x2000mm, middle 6202200 Vezi
    6202201 Slotted Channel Ferrofix glued flange H: 6mm, 17x2000mm, outer 6202201 Vezi
    6202300 Slotted Channel Ferrofix glued flange H: 6mm, 17x3000mm, middle 6202300 Vezi
    6202301 Slotted Channel Ferrofix glued flange H: 6mm, 17x3000mm, outer 6202301 Vezi
    6202400 Slotted Channel Ferrofix glued flange H: 6mm, 17x4000mm, middle 6202400 Vezi
    6202401 Slotted Channel Ferrofix glued flange H: 6mm, 17x4000mm, outer 6202401 Vezi
    6220050 Box Channel Ferrofix glued flange H: 6mm, 200x550mm 6220050 Vezi
    6220100 Box Channel Ferrofix glued flange H: 6mm, 200x1050mm 6220100 Vezi
    6220150 Box Channel Ferrofix glued flange H: 6mm, 200x1550mm 6220150 Vezi
    6220200 Box Channel Ferrofix glued flange H: 6mm, 200x2050mm 6220200 Vezi
    6220250 Box Channel Ferrofix glued flange H: 6mm, 200x2550mm 6220250 Vezi
    6220300 Box Channel Ferrofix glued flange H: 6mm, 200x3050mm 6220300 Vezi
    6230050 Box Channel Ferrofix glued flange H: 6mm, 300x550mm 6230050 Vezi
    6230100 Box Channel Ferrofix glued flange H: 6mm, 300x1050mm 6230100 Vezi
    6230150 Box Channel Ferrofix glued flange H: 6mm, 300x1550mm 6230150 Vezi
    6230200 Box Channel Ferrofix glued flange H: 6mm, 300x2050mm 6230200 Vezi
    6230250 Box Channel Ferrofix glued flange H: 6mm, 300x2550mm 6230250 Vezi
    6230300 Box Channel Ferrofix glued flange H: 6mm, 300x3050mm 6230300 Vezi
    6235035 Floor Tray Ferrofix glued flange H: 6mm, 350x350mm 6235035 Vezi
    6240050 Box Channel Ferrofix glued flange H: 6mm, 400x550mm 6240050 Vezi
    6240100 Box Channel Ferrofix glued flange H: 6mm, 400x1050mm 6240100 Vezi
    6240150 Box Channel Ferrofix glued flange H: 6mm, 400x1550mm 6240150 Vezi
    6240200 Box Channel Ferrofix glued flange H: 6mm, 400x2050mm 6240200 Vezi
    6240250 Box Channel Ferrofix glued flange H: 6mm, 400x2550mm 6240250 Vezi
    6240300 Box Channel Ferrofix glued flange H: 6mm, 400x3050mm 6240300 Vezi
    6250050 Floor Tray Ferrofix glued flange H: 6mm, 500x500mm 6250050 Vezi
    6250100 Floor Tray Ferrofix glued flange H: 6mm, 500x1000mm 6250100 Vezi
    6260600 Floor Tray Ferrofix glued flange H: 6mm, 600x600mm 6260600 Vezi
    6280800 Floor Tray Ferrofix glued flange H: 6mm, 800x800mm 6280800 Vezi
      Title Item no.
      Title Item no.
    48987 Extension section H: 136 mm, without inlet 48987 Vezi
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
    54189 Extension section System 125, side inlet DN 50/40 54189 Vezi
    54902 Extension section System 125, Side inlet DN 50 54902 Vezi
    54903 Extension section System 125, horiz Inlet DN 50, Gl fl. 54903 Vezi
      Title Item no.
    54500 Odour trap with sludge trap, system 125, 304 SST 54500 Vezi
    • Nominal size (DN) (nennweite): 70
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Socket version (stutzen_ausfuehrung): lateral
    • Odour trap (geruchsverschluss): included
