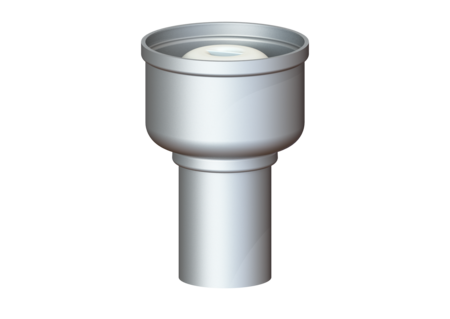

Ferrofix drain body

Sys 125, DN 70, Vertical outlet

54410
54410
PDF product data sheet

KESSEL Ferrofix drain body vertical outlet, System 125, nominal size (DN) 70, socket vertical, waterproofing layer drain body by Connection flange, outside diameter (OD) 75 mm

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • Variably combinable with upper sections
Item no. 54410
GTIN 4026092053638
Price group 70

Ferrofix drain body Sys 125, DN 70, Vertical outlet
In combination with a System 125 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 75 mm Approval: Z-19.53-2414,Z-19.53-2414_V,Z-19.17-1719,Z-19.17-1719_V Odour trap: included Dimensions Net weight: 1,06 kg Gross weight: 1,22 kg Length: 142 mm Width: 142 mm Height: 204 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: vertical
  Title Item no.
48165 Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Vezi
48176 Upper section Slotted cover, anti-slip, L 15 48176 Vezi
48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Vezi
48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Vezi
48202 Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Vezi
48203 Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Vezi
48204 Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Vezi
48206 Variofix upper section Slotted cover, 316 SST, K 3 48206 Vezi
48209 Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Vezi
48211 Upper section tileable, 304 SST, K 3 48211 Vezi
48218 Upper section Slot design cover, 304 SST, K 3 48218 Vezi
48219 Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Vezi
48220 Upper section Spot design cover, 304 SST, K 3 48220 Vezi
48221 Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Vezi
48225 Upper section Kessel design cover, 304 SST, L 15 48225 Vezi
48226 Upper section Oval design cover, 304 SST, L 15 48226 Vezi
48227 Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Vezi
48228 Upper section Oval design cover, 316 SST, L 15 48228 Vezi
48618 Variofix upper section Design cover Slot, 304 st., K 3 48618 Vezi
48619 Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Vezi
48620 Variofix upper section Designrost Spot, V2A, K 3 48620 Vezi
48621 Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Vezi
48625 Variofix upper section Designrost Kessel, V2A, L 15 48625 Vezi
48626 Variofix upper section Designrost Oval, V2A, L 15 48626 Vezi
48669 Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Vezi
48670 Variofix upper section Designrost Oval, V4A, L 15 48670 Vezi
48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Vezi
48905 Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Vezi
48906 Variofix upper section tileable, 304 st., K 3 48906 Vezi
48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Vezi
54921 Ferrofix upper section S125, Gl fl.,6 mm slot grat., 146x146 mm 54921 Vezi
54922 Ferrofix upper section S125, Gl fl.,6 mm slot grat., 146x146 mm 54922 Vezi
54923 Ferrofix upper section glue flan. H: 15mm,300x300mm,slot grat. 54923 Vezi
54926 Ferrofix upper section w/o glue flange, 300x300mm, slot grat. 54926 Vezi
59010 Ferrofix upper section Sys 125, glue fl, Hole pat cover, K3 59010 Vezi
59165 Ferrofix upper section Sys 125, Gl fl., Slot cover, 100x100 mm 59165 Vezi
59192 Ferrofix upper section Sys 125, for PVC, Hole patt cover, L 15 59192 Vezi
59400 Ferrofix upper section Sys 125, Ladd grt, Class D 59400 Vezi
6000100 Floor Tray Ferrofix glued flange H: 15mm, 1000x1000mm 6000100 Vezi
6002100 Slotted Channel Ferrofix glued flange H: 15mm, 17x1000mm, middle 6002100 Vezi
6002101 Slotted Channel Ferrofix glued flange H: 15mm, 17x1000mm, outer 6002101 Vezi
6002140 Slotted Channel Ferrofix glued flange H: 15mm, 17x1400mm, middle 6002140 Vezi
6002141 Slotted Channel Ferrofix glued flange H: 15mm, 17x1400mm, outer 6002141 Vezi
6002200 Slotted Channel Ferrofix glued flange H: 15mm, 17x2000mm, middle 6002200 Vezi
6002201 Slotted Channel Ferrofix glued flange H: 15mm, 17x2000mm, outer 6002201 Vezi
6002300 Slotted Channel Ferrofix glued flange H: 15mm, 17x3000mm, middle 6002300 Vezi
6002301 Slotted Channel Ferrofix glued flange H: 15mm, 17x3000mm, outer 6002301 Vezi
6002400 Slotted Channel Ferrofix glued flange H: 15mm, 17x4000mm, middle 6002400 Vezi
6002401 Slotted Channel Ferrofix glued flange H: 15mm, 17x4000mm, outer 6002401 Vezi
6015050 Box channel Ferrofix glued flange H: 15mm, 153x511mm 6015050 Vezi
6015100 Box channel Ferrofix glued flange H: 15mm, 153x1011mm 6015100 Vezi
6015150 Box channel Ferrofix glued flange H: 15mm, 156x1514mm 6015150 Vezi
6015200 Box channel Ferrofix glued flange H: 15mm, 156 x 2014 mm 6015200 Vezi
6015250 Box channel Ferrofix glued flange H: 15mm, 156 x 2514 mm 6015250 Vezi
6015300 Box channel Ferrofix glued flange H: 15mm, 156 x 3014 mm 6015300 Vezi
6020050 Box channel Ferrofix glued flange H: 15mm, 200x550mm 6020050 Vezi
6020100 Box channel Ferrofix glued flange H: 15mm, 200x1050mm 6020100 Vezi
6020150 Box channel Ferrofix glued flange H: 15mm, 200x1550mm 6020150 Vezi
6020200 Box channel Ferrofix glued flange H: 15mm, 200x2050mm 6020200 Vezi
6020250 Box channel Ferrofix glued flange H: 15mm, 200x2550mm 6020250 Vezi
6020300 Box channel Ferrofix glued flange H: 15mm, 200x3050mm 6020300 Vezi
6030050 Box channel Ferrofix glued flange H: 15mm, 300x550mm 6030050 Vezi
6030100 Box channel Ferrofix glued flange H: 15mm, 300x1050mm 6030100 Vezi
6030150 Box channel Ferrofix glued flange H: 15mm, 300x1550mm 6030150 Vezi
6030200 Box channel Ferrofix glued flange H: 15mm, 300x2050mm 6030200 Vezi
6030250 Box channel Ferrofix glued flange H: 15mm, 300x2550mm 6030250 Vezi
6030300 Box channel Ferrofix glued flange H: 15mm, 300x3050mm 6030300 Vezi
6035035 Floor Tray Ferrofix glued flange H: 15mm, 350x350mm 6035035 Vezi
6040050 Box channel Ferrofix glued flange H: 15mm, 400x550mm 6040050 Vezi
6040100 Box channel Ferrofix glued flange H: 15mm, 400x1050mm 6040100 Vezi
6040150 Box channel Ferrofix glued flange H: 15mm, 400x1550mm 6040150 Vezi
6040200 Box channel Ferrofix glued flange H: 15mm, 400x2050mm 6040200 Vezi
6040250 Box channel Ferrofix glued flange H: 15mm, 400x2550mm 6040250 Vezi
6040300 Box channel Ferrofix glued flange H: 15mm, 400x3050mm 6040300 Vezi
6050050 Floor Tray Ferrofix glued flange H: 15mm, 500x500mm 6050050 Vezi
6050100 Floor Tray Ferrofix glued flange H: 15mm, 500x1000mm 6050100 Vezi
6060600 Floor Tray Ferrofix glued flange H: 15mm, 600x600mm 6060600 Vezi
6080800 Floor Tray Ferrofix glued flange H: 15mm, 800x800mm 6080800 Vezi
  Title Item no.
  Title Item no.
48099 Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Vezi
48987 Extension section H: 136 mm, without inlet 48987 Vezi
48989 Extension section H: 136 mm, with side inlet DN 50 48989 Vezi
48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Vezi
48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Vezi
54189 Extension section System 125, side inlet DN 50/40 54189 Vezi
54902 Extension section System 125, Side inlet DN 50 54902 Vezi
54903 Extension section System 125, horiz Inlet DN 50, Gl fl. 54903 Vezi
  Title Item no.
54500 Odour trap with sludge trap, system 125, 304 SST 54500 Vezi
  • Nominal size (DN) (nennweite): 70
  • Material of drain body (material_grundkoerper): Stainless steel 14301
  • TÜV test mark (pruefzeichen): ID 1111244461
  • Socket version (stutzen_ausfuehrung): vertical
  • Odour trap (geruchsverschluss): included
