Ecolift XL backwater lifting st.

Mono, 1 motor flap, SPF 3000-S3, Taper

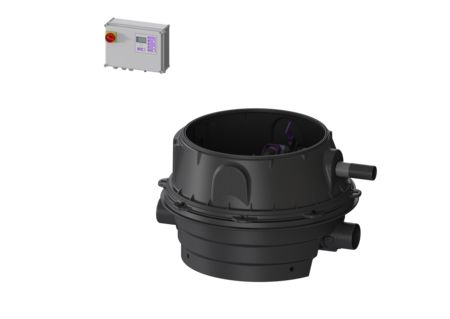

KESSEL Ecolift XL backwater lifting st., wastewater without sewage, underground installation, Single unit, with a submersible SPF 3000 pump, operating mode S3 - 50 %, alarm generator with optical probe, control unit Comfort Plus

  • Wastewater drainage without interruption, even if a power failure occurs, as long as there is no backwater
  • low pump use
  • minimised noise emissions
Item no. 8741046
GTIN 4026092070550
Price group 60

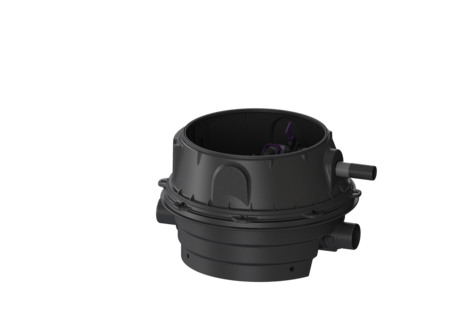

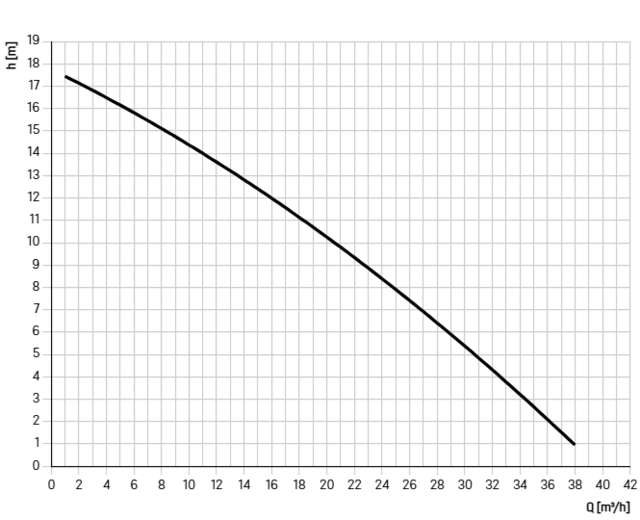

Ecolift XL backwater lifting st. Mono, 1 motor flap, SPF 3000-S3, Taper
The backwater lifting station for non-faecal wastewater is equipped with one submersible pump, one motor-driven and one mechanical closure system and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. Quick-release closures enable the integrated components to be removed easily. Normally, draining takes place via the natural fall to the sewer. Backwater is detected by an optical probe, which causes the motor-driven closure system to close automatically and there is no longer free passage to the sewer. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater into the sewer. The pressure pipe is a welded PE pipe; with pump SPF 4500, the pressure pipe must also be continued up to a pressure release chamber. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. Variant Note on installation depth: Version with lowest installation height Type of system: Single unit Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 70 Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Motor-driven backwater flaps: 1 Mechanical backwater flaps: 1 General characteristics Colour: black Standard: ÖNORM B 2501 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Backwater protection: Type 3 Approval: Z-53.2-493 Dimensions Net weight: 113,3 kg Gross weight: 133,7 kg Groundwater resistant from lower edge of base section: 3000 mm Vertical drop between inlet and outlet: 15 mm Length: 1379 mm Width: 1200 mm Height: 785 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 950 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Channel: continuous channel Venting connection (DN): 70 Distance pipe bottom outlet to tank bottom: 120 mm Distance pipe bottom inlet to tank bottom: 135 mm Distance from inlet pipe invert to top of tank: 645 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Clear width of entry (LW): 800 mm Pumping volume: 20 l Tank volume: 65 l Pumping device Pump: SPF 3000 Number of pumps: 1 Weight, pump: 24 kg Connection type: Direct connection Rated current: 5,4 A Length of mains cable for pump: 10 m Protection class: I Insulation class: F Cos phi - power factor: 0,89 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 36 m³/h Max. pumping height: 17,5 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): 3 x C 16 A Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Plus Motor protection switch: yes Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,4 A
  Title Item no.
Upper section with cover plate LW 800, Class K 3, tileable 8740175 Vezi
Upper section with cover plate LW 800, Cl K 3 with waterproof flange 8740176 Vezi
Upper section with cover plate LW 800, Class A/L15 8740177 Vezi
Upper section with cover plate LW 800, Class A/L15 w. waterproof flange 8740178 Vezi
Upper section with cover plate LW 800, Class B 8740179 Vezi
Upper section Square cover plate, LW 800, Class D 8740180 Vezi
Upper section with cover plate LW 800, Cl K 3 8740181 Vezi
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Vezi
Compressor set for air bubbling 28048 Vezi
TeleControl GSM modem for Comfort control units 230V/400V 28792 Vezi
Cable accessories 80889 Vezi
Cable accessories Extension for motor 80890 Vezi
Cable accessories Extension for pump 80891 Vezi
Installation set Thermostat, Hygrostat 97713 Vezi
Outdoor Cabinet W: 590 mm,for installation control units 97714 Vezi
Warning beacon for outdoor cabinet 97715 Vezi
Outdoor Cabinet W: 460 mm, for installation control unit 97716 Vezi
Outdoor cabinet W: 785 mm, for control unit installation 97723 Vezi
Outdoor Cabinet 97724 Vezi
  Title Item no.
Splash guard set for optical probe 28706 Vezi
Contr.unit Comfort Plus 400V (2x)4-6,3A 28787 Vezi
Battery 9 V block 680034 Vezi
Seal for SPF 1400 - SPF 4500 680052 Vezi
Pressure hose Sold by the metre, 6x4 mm 100 680071 Vezi
Flap holder for motor-driven and mechanical flap 680101 Vezi
One-handed closure DN 63 680380 Vezi
Backflow preventer left, with non-return flap 680381 Vezi
Backflow preventer right, with non-return flap 680382 Vezi
Valve key for shut-off valve DN 63 680386 Vezi
Ecolift XL lockable cover Outlet side 680391 Vezi
Pump flange Ecolift XL, incl. seal 680398 Vezi
Pump plate Ecolift XL 680399 Vezi
Pressure hose DN 63, L: 367 mm 680400 Vezi
Pressure pipe with shut-off valve left-hand version, angled 680401 Vezi
Pressure pipe with shut-off valve right-hand version, angled 680402 Vezi
Support rib for shut-off valve, slanted support 680403 Vezi
Seal set Ecolift XL 680418 Vezi
Drive motor for clamping on, 10 m cable 680452 Vezi
Spare part set, optical probe 10 m cable 680455 Vezi
Cover for pump flange, d: 220 mm 680460 Vezi
Pump drive SPF 3000 400 V, S3, 10 m cable 680524 Vezi
Immersion pipe for Ecolift XL, 180 mm 680827 Vezi
Motor-driven backwater flap Premium 80038 Vezi
Slide-in flap housing for motorised flap with flap holder 80039 Vezi
Slide-in flap housing with mechanical flap, flap holder 80041 Vezi
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Comfort Plus
  • TÜV test mark (pruefzeichen): ID 1111241794
  • Installation situation (einbausituation): underground installation
  • (nennweite):
  • Pump (pumpe): SPF 3000
  • Operating voltage (betriebsspannung): 400  V
